Pinout Values and Diagnostic Parameters

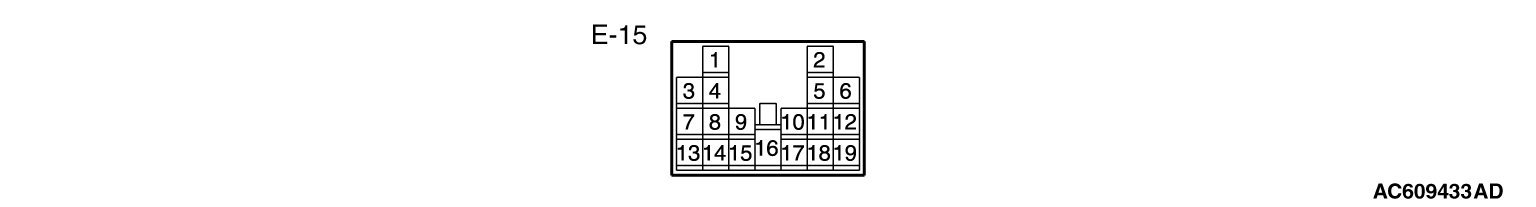

CHECK AT ECU TERMINAL

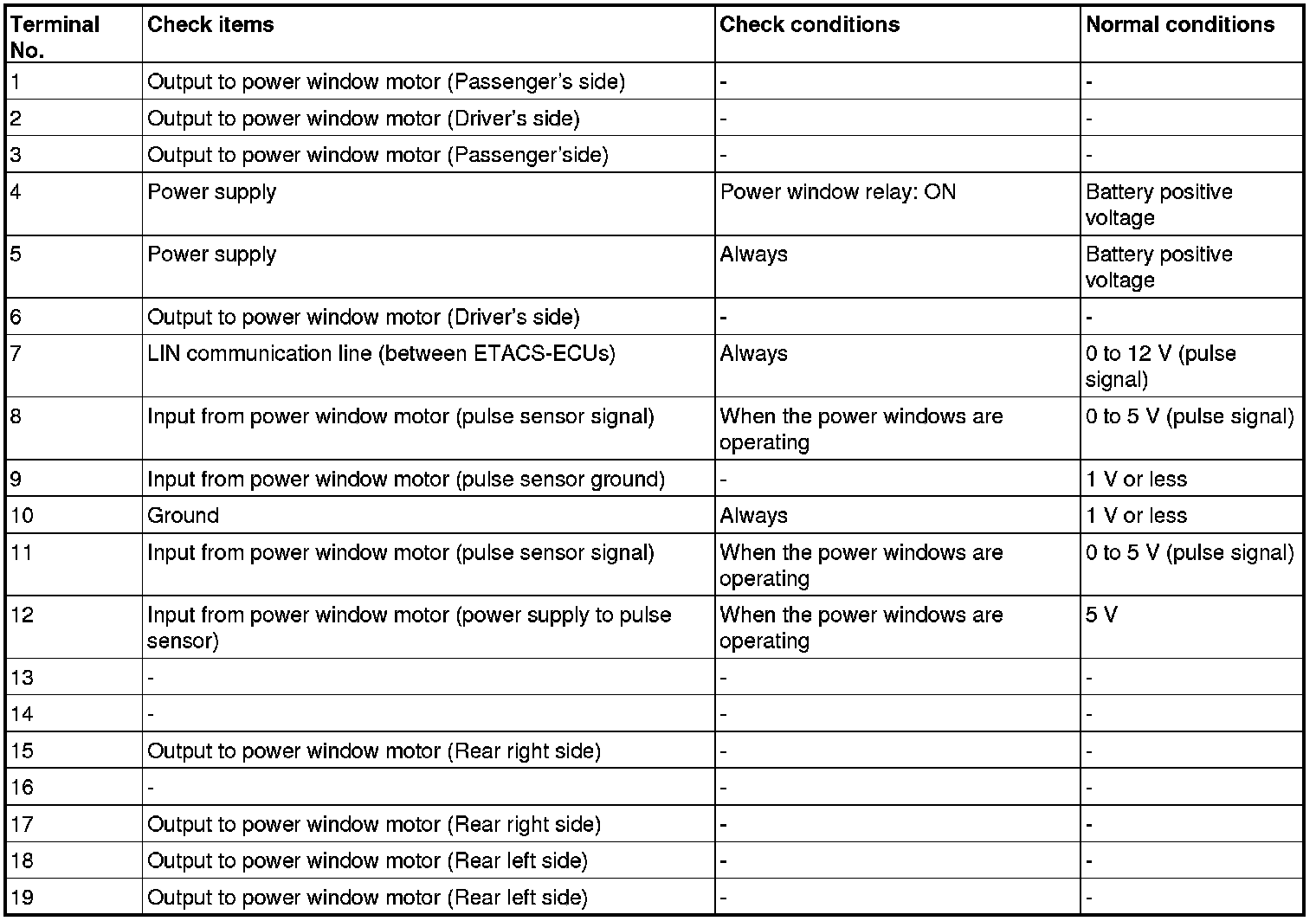

POWER WINDOW SWITCH TERMINAL CHECK

POWER WINDOW MAIN SWITCH
