Power Window Switch and Regulator Motor Inspection

INSPECTION

POWER WINDOW SWITCH CONTINUITY CHECK





SUB SWITCH






DOOR WINDOW REGULATOR CHECK

1. Connect a battery directly to the motor terminals and check that the motor runs smoothly.

2. Check that the motor runs in the opposite direction when the battery is connected with the polarity reversed.

3. If a defect is found, replace the window regulator as an assembly.

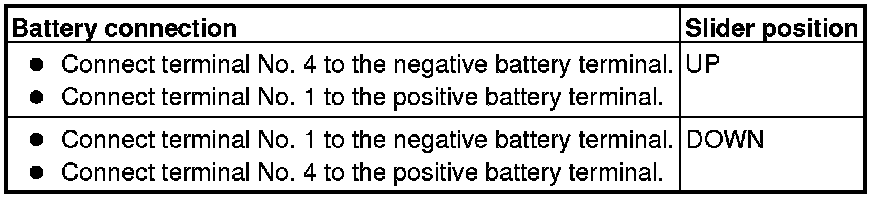

FRONT DOOR (PASSENGER'S SIDE)

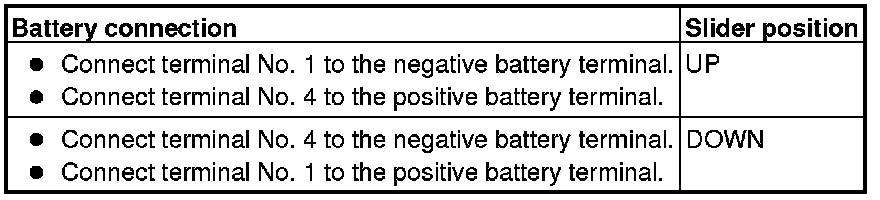

REAR DOOR
