Power Window Safety Mechanism Check [Driver Side Only]

POWER WINDOW SAFETY MECHANISM CHECK [DRIVER'S SIDE ONLY]

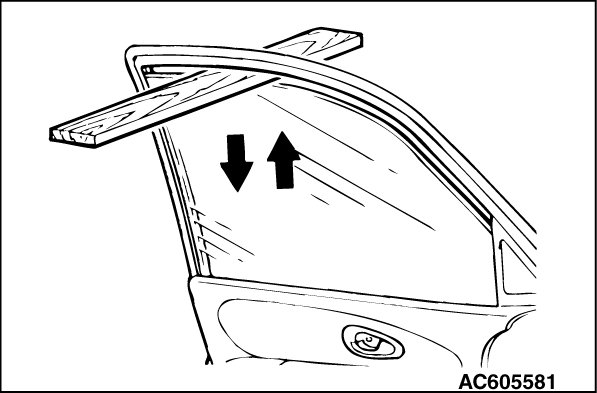

1. Place an approximately 10 mm (0.39 inch) thick wood board as shown. Then, close the door window glass by one-shot up action of the power window switch.
2. Check that the window glass lowers by about 150 mm (5.9 inches) when it clamps the board.This is called anti-trap function (safety mechanism). If this does not happen, carry out troubleshooting (Refer to Symptom Chart).
3. Check that the window glass continue raising up to the door upmost position without activating the anti-trap function while the switch is kept pulling up (this is called forced closing function).
NOTE:
If the anti-trap function (safety mechanism) is activated consecutively 3 times or more, carry out the learning procedures of the power window fully closed position (Refer to Programming and Relearning).
