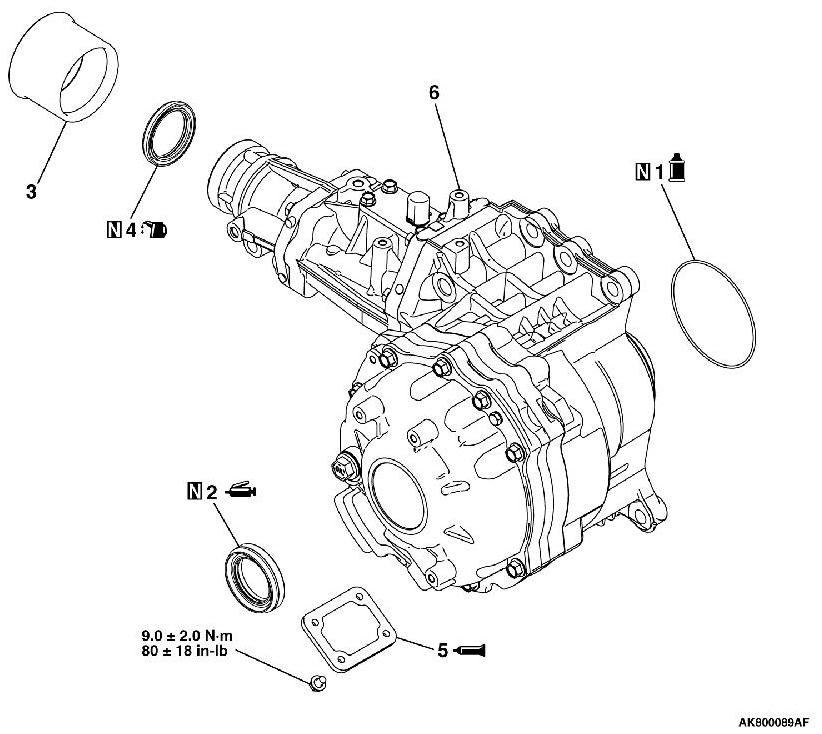

Active Center Differential (ACD)

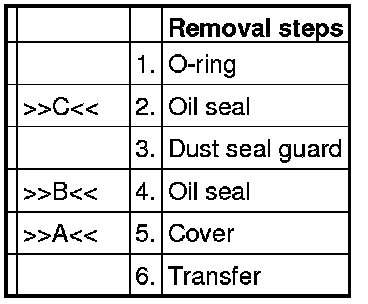

DISASSEMBLY AND ASSEMBLY









- MD998382: Crankshaft front oil seal installer
- MD998550: Extension housing seal installer

ASSEMBLY SERVICE POINT

]]A[[ COVER INSTALLATION





1. Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant.
Never touch the degreased surface by hand.

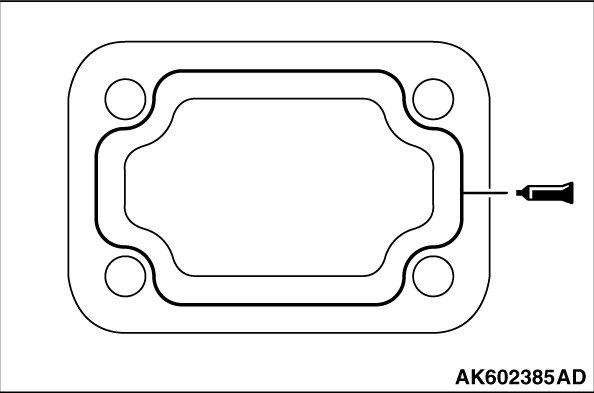

2. Apply a 1.5 mm (0.06 in) diameter bead of sealant as illustrated onto the cover.
Specified sealant: Mitsubishi Part No. MD997740 or equivalent
3. Attach the cover to the transfer and tighten it to the specified torque.

]]B[[ OIL SEAL INSTALLATION

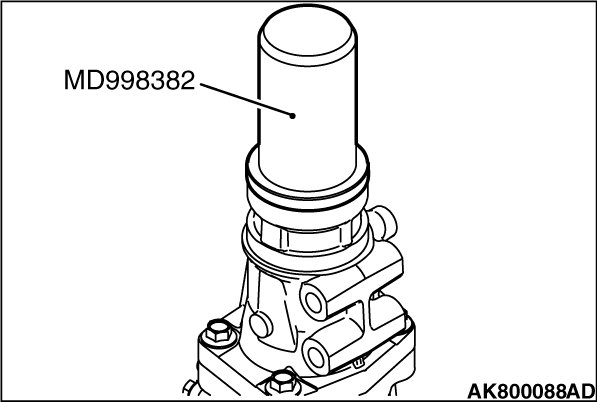

1. Using the special tool MD998382, to install the oil seal.
2. Apply transfer oil to the lip of oil seal.

]]C[[ OIL SEAL INSTALLATION

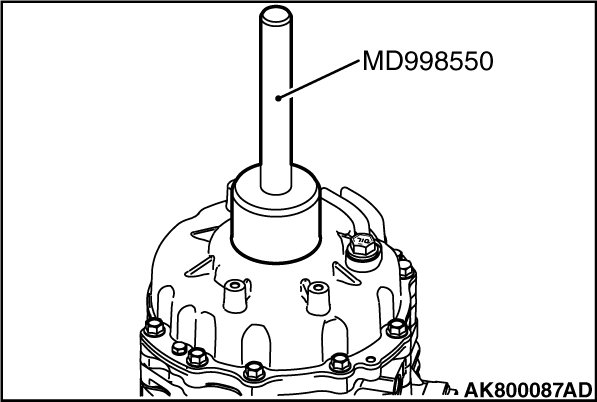

1. Using the special tool MD998550, to install the oil seal.
2. Apply specified grease to the oil seal lip area.
Specified grease: Retinax A
