Freeze Frame Data Check

DIAGNOSTIC FUNCTION

FREEZE FRAME DATA CHECK

Data of when the diagnostic trouble code is determined is obtained, and the status of S-AWC is stored. By analyzing each data using the scan tool, troubleshooting can be carried out efficiently.
Display items of the freeze frame data are as follows.

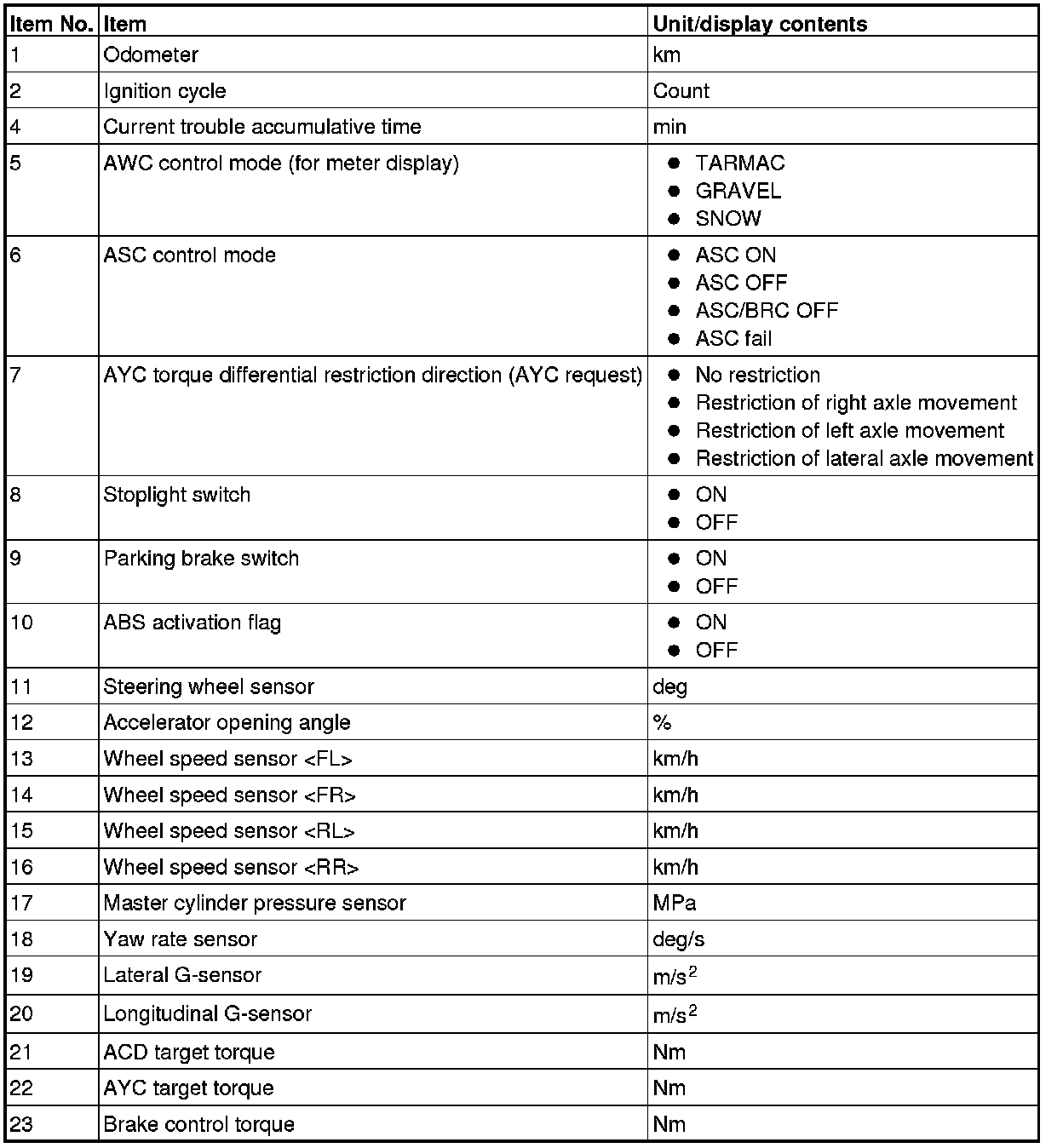

DISPLAY ITEM LIST





NOTE:
BRC: Brake Control System
