Actuator Test Reference Table

SPECIAL FUNCTION REFERENCE TABLE

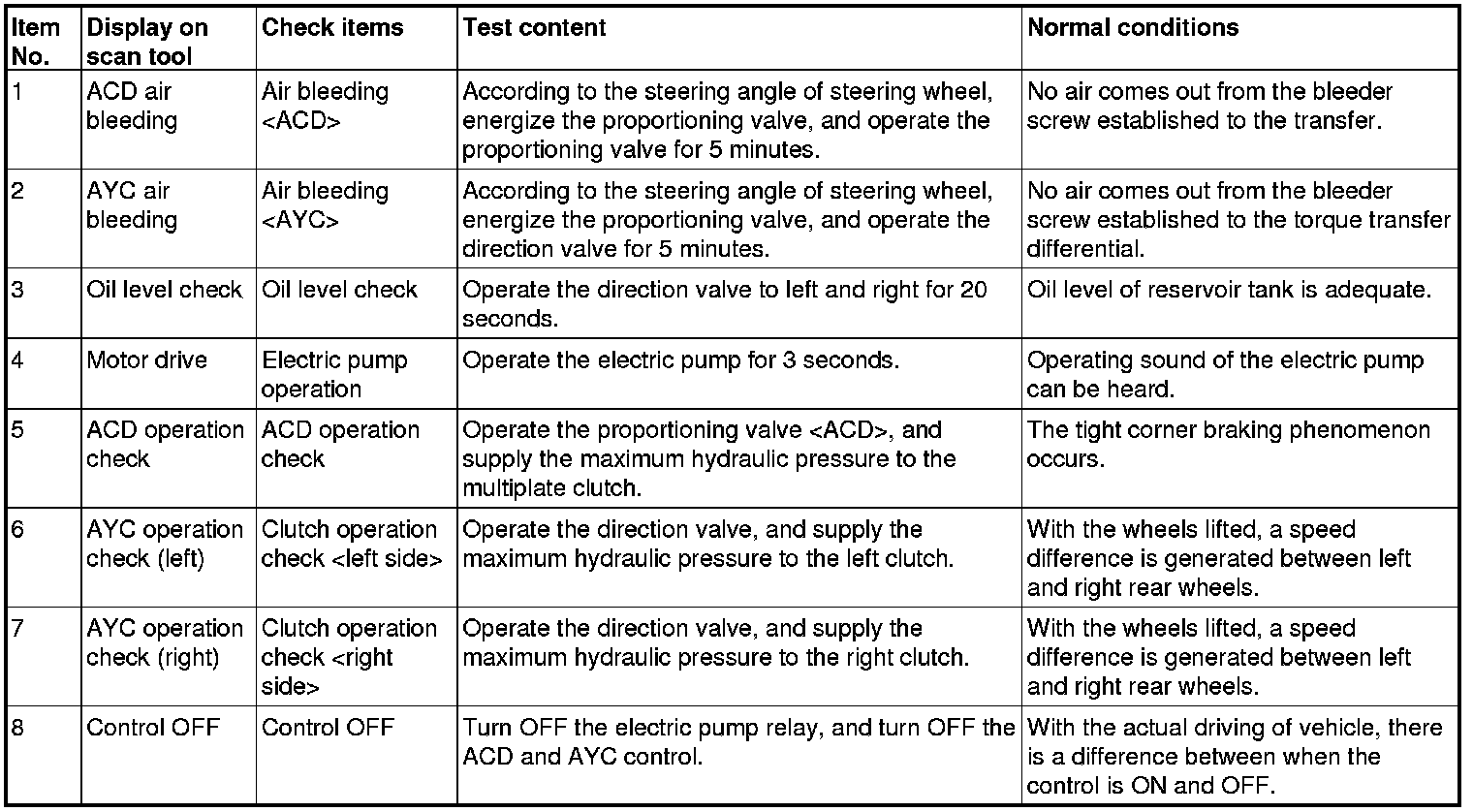

ACTUATOR TEST TABLE




1.
CAUTION:
Since the fluid in the hydraulic unit will be hardened under low temperature, all the inspection items in the table may not be checked properly. Therefore, completely remove snow and ice from the hydraulic unit and leave the vehicle under temperature of 0°C (32°F) or higher for 4 hours or more before performing the actuator test.

The actuator test can be performed only when all the following conditions are satisfied.

- Every wheel speed sensor input is 20 km/h or less.
- No system malfunction is detected.
- The steering angle of steering wheel is within± 30° from the neutral position.
2. With the actuator test, when any of the conditions below is met, the forced activation will be canceled.

- Any of the wheel speed sensors detects an input of 20 km/h or more (excluding item No. 08 "Control OFF").
- A system malfunction is detected.
- The forced activation time has elapsed.
- Scan tool is removed.
- Scan tool clear key is operated.

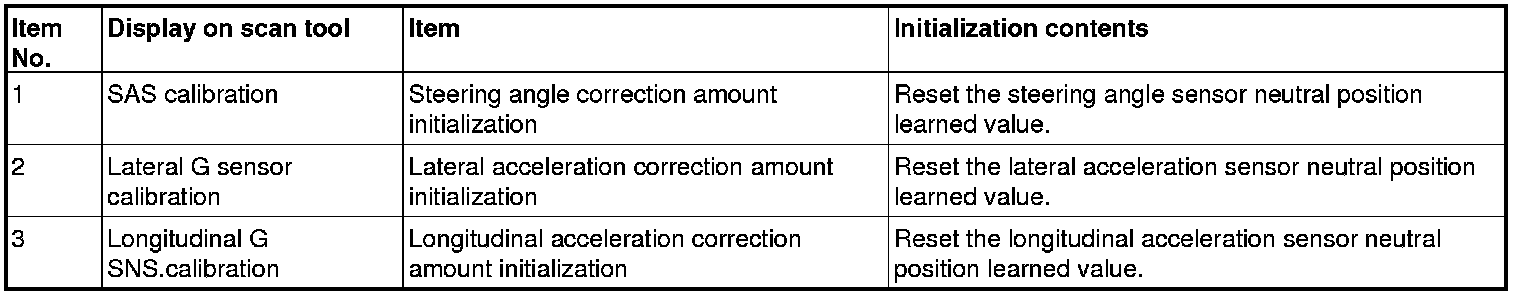

SENSOR NEUTRAL POSITION LEARNED INITIALIZATION LIST




The sensor neutral position learned value initialization can be performed only when the vehicle is stopped.
