Fail-Safe Function

DIAGNOSTIC FUNCTION

FAIL-SAFE FUNCTION

If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the AWC-ECU performs a control for the driver safety and system protection. The control contents are as follows.

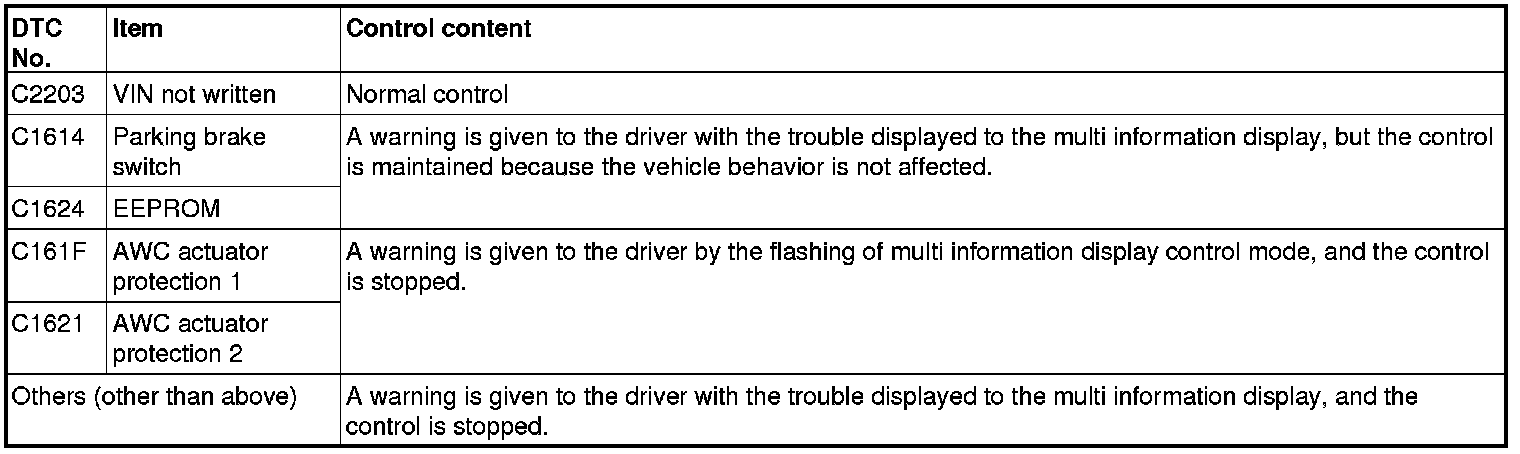

FAIL-SAFE REFERENCE TABLE





NOTE:
All the troubles will return to a normal status when the ignition switch is turned from OFF to ON.
