Shift Linkage: Service and Repair

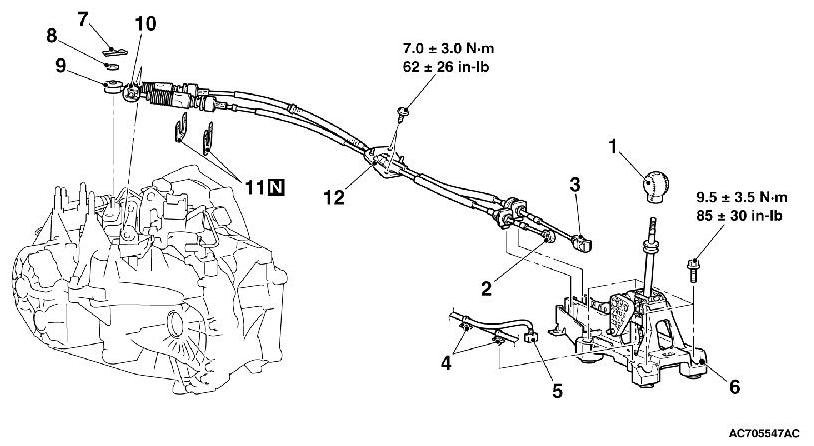

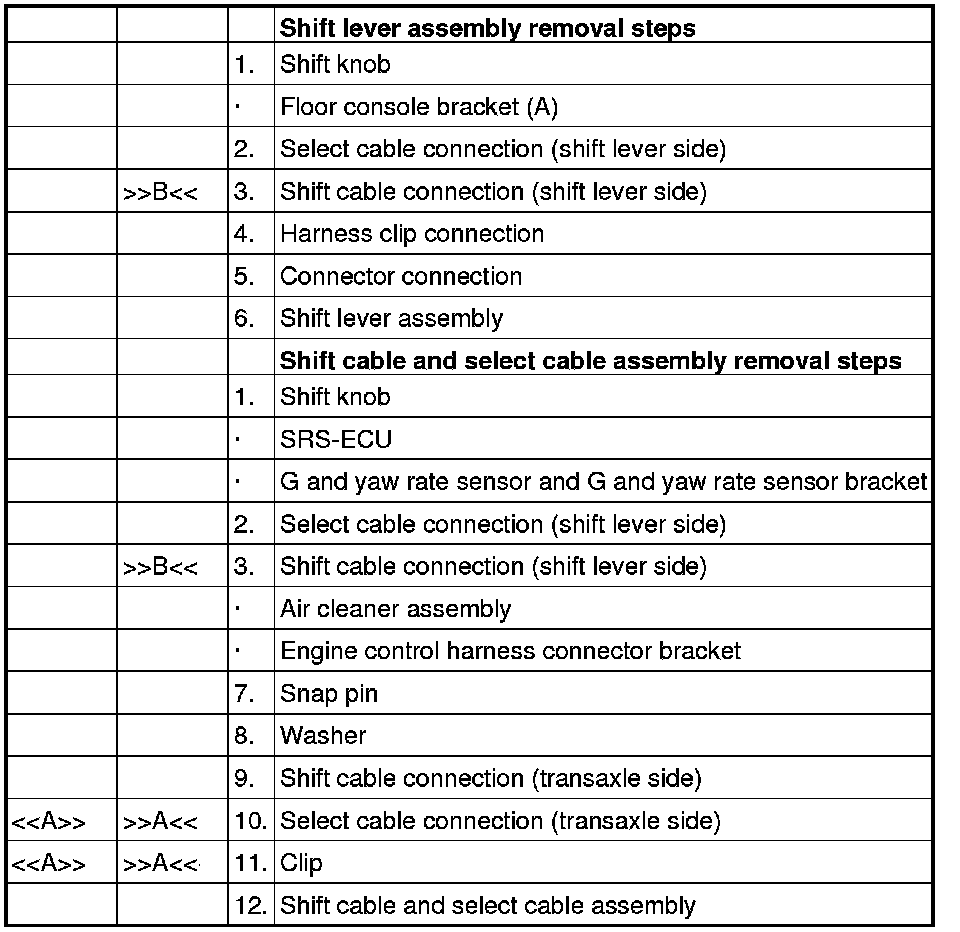

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

[[A]] SELECT CABLE CONNECTION (TRANSAXLE SIDE) / CLIP REMOVAL





1. Set the select cable clips to a status shown in the figure, then disconnect the cable.





2. Push down the clip claw using a screwdriver or others. Then, remove the clip together with the cable from the bracket.

INSTALLATION SERVICE POINTS

]]A[[ CLIP/SHIFT CABLE CONNECTION (TRANSAXLE SIDE)/SELECT CABLE CONNECTION (TRANSAXLE SIDE) INSTALLATION





1.
CAUTION:
Securely insert the clip, shift cable, and select cable until they click into place.

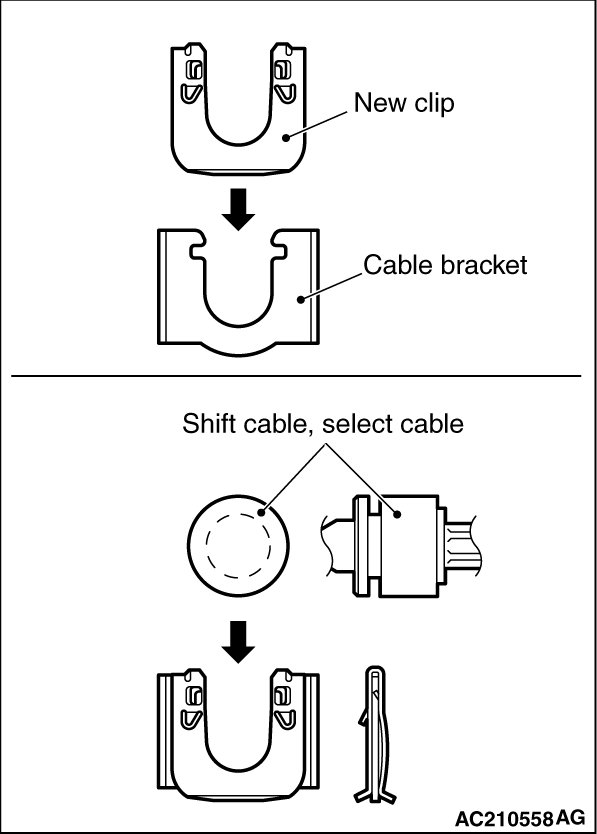

After inserting the new clip into the cable bracket, insert the shift cable or select cable into the cable bracket.
NOTE:
The clip can be installed either with its face side down or under side down.





2. After assembling the clip of select cable as shown in the figure, connect the cables to the levers.

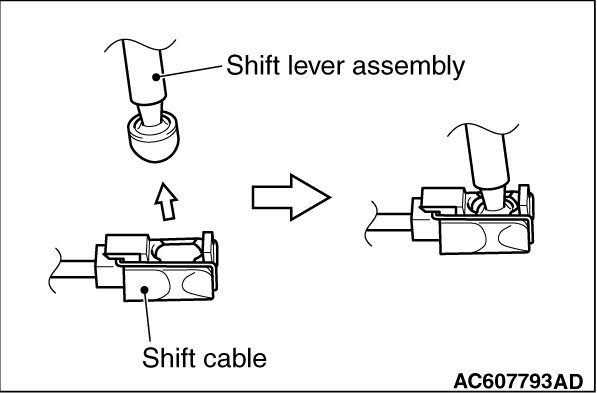

]]B[[ SHIFT CABLE CONNECTION (SHIFT LEVER SIDE)





To the area of shift lever assembly shown in the figure, securely insert the shift cable tip until it clicks into place.
