Select Lever Disassembly and Assembly

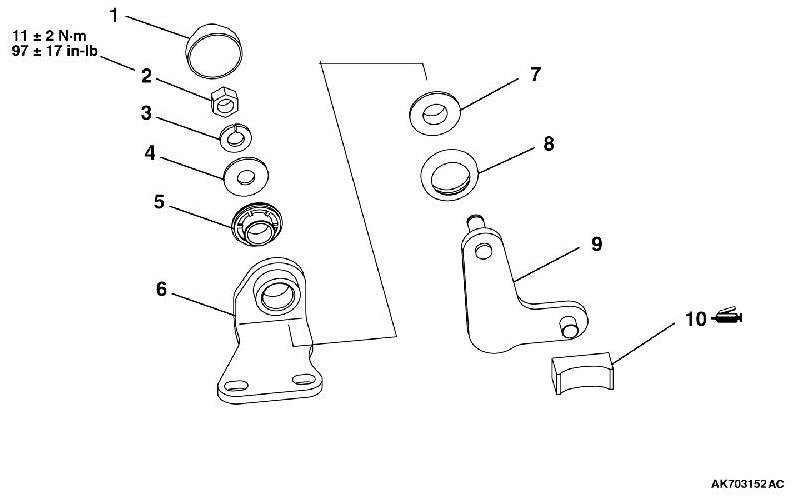

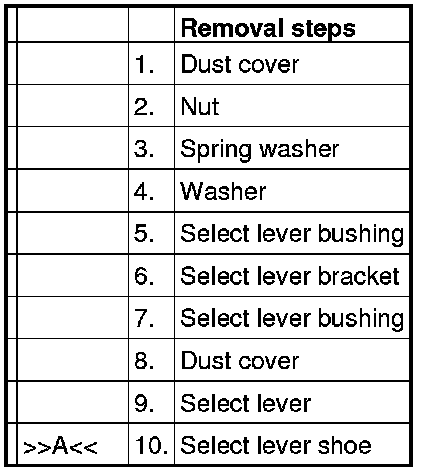

DISASSEMBLY AND ASSEMBLY









ASSEMBLY SERVICE POINTS

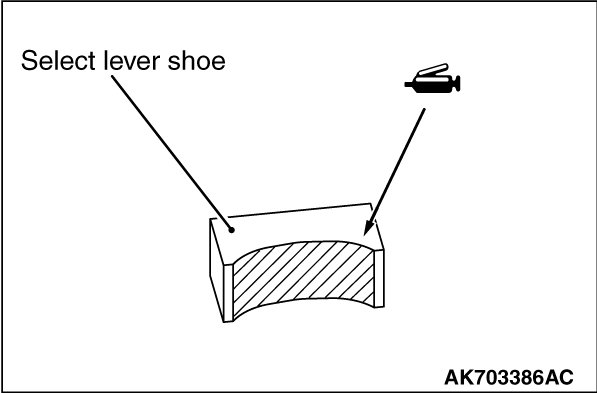

]]A[[ SELECT LEVER SHOE INSTALLATION





Apply specified grease to the sliding contact surface of the select lever shoe.
Specified grease: Mitsubishi Part No. 0101011 or equivalent
