Reverse Idler Gear Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

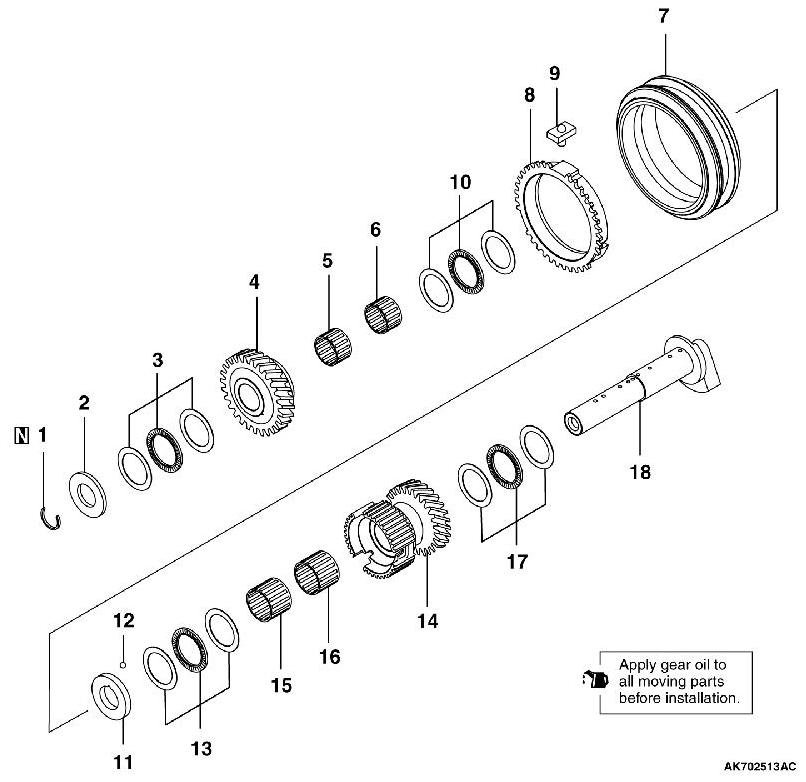

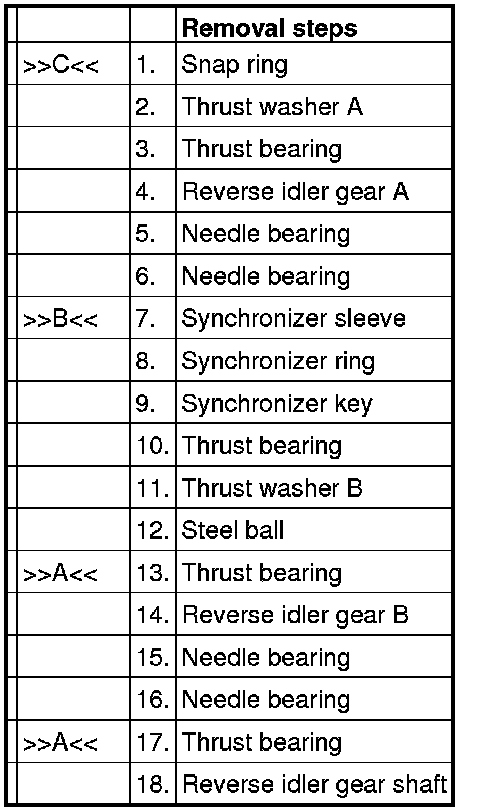

DISASSEMBLY SERVICE POINTS

]]A[[ THRUST BEARING INSTALLATION

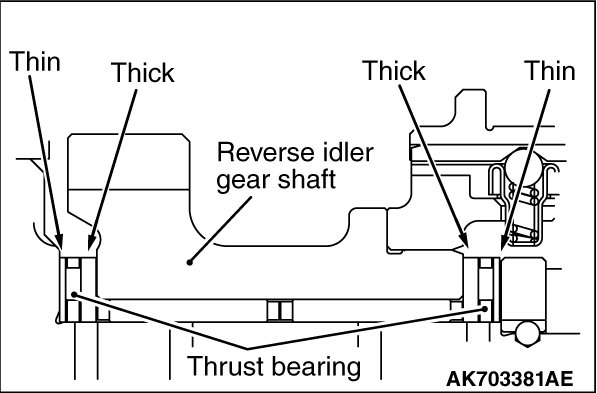

Install the thrust bearing as shown.

]]B[[ SYNCHRONIZER SLEEVE INSTALLATION

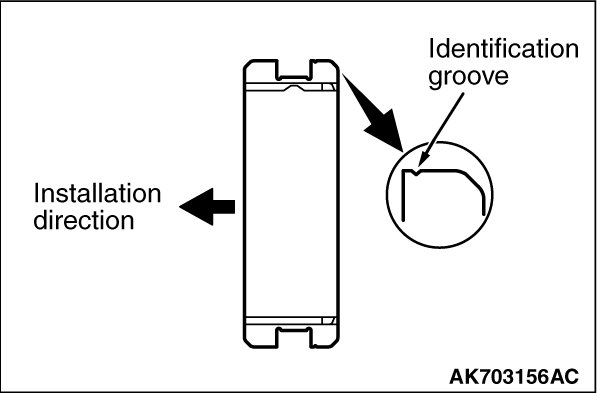

Install the synchronizer sleeve in the illustrated direction.

]]C[[ SNAP RING INSTALLATION

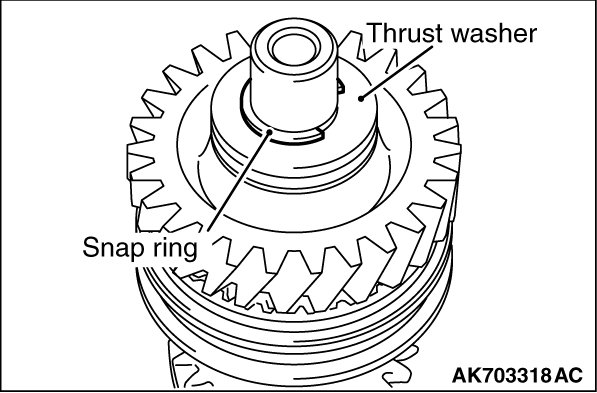

.Select and install appropriate snap ring onto the reverse idler gear shaft so that the clearance of the thrust washer A meets the standard value.
Standard Value: 0 - 0.11 mm (0 - 0.0043 inch)
