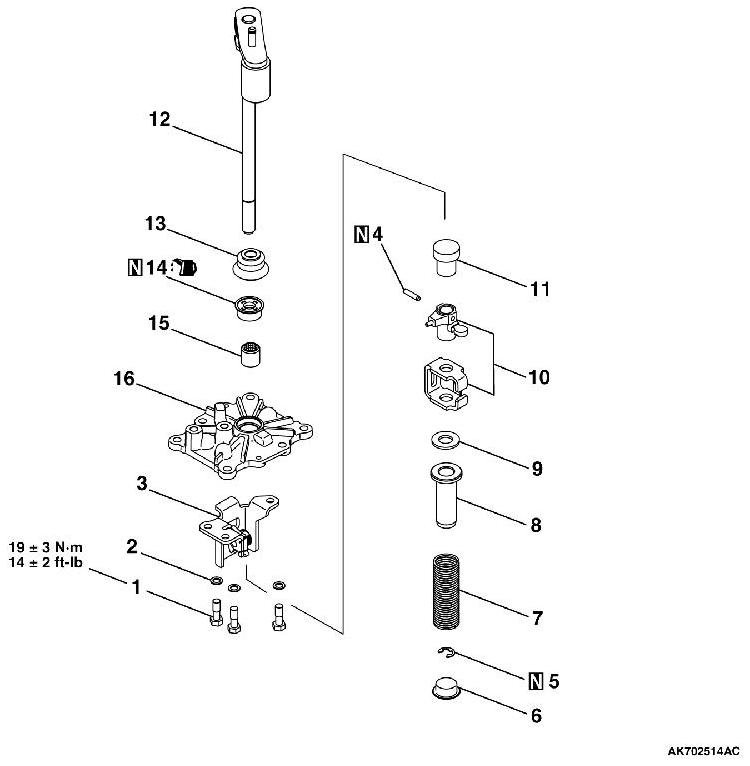

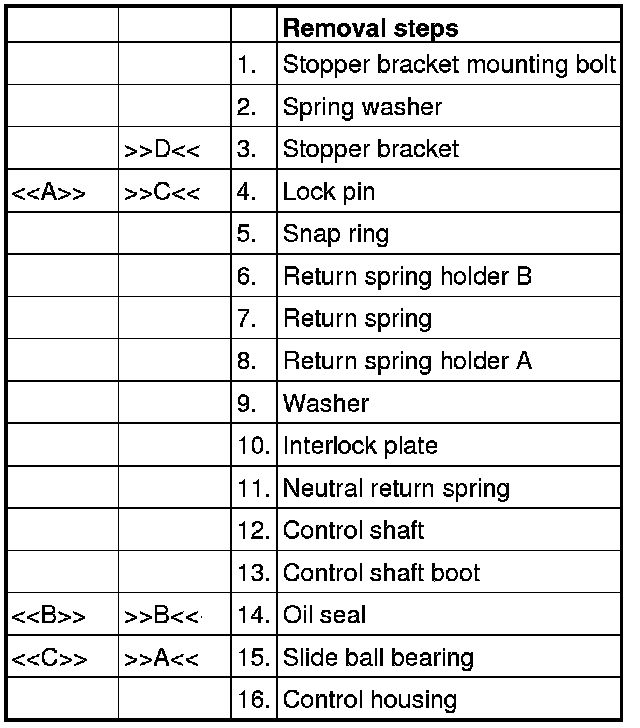

Control Housing Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY









- MD999566: Claw
- MB990947: Lower arm bushing arbor
- MB990984: Mount bushing remover and installer arbor
- MB991246: Lower arm bushing arbor

DISASSEMBLY SERVICE POINTS

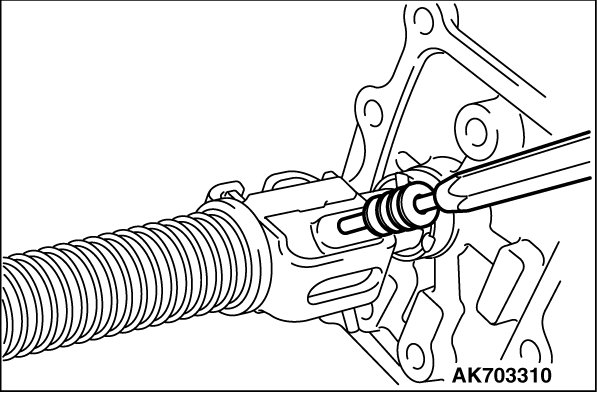

[[A]] LOCK PIN REMOVAL





Drive out the lock pin in the direction shown.

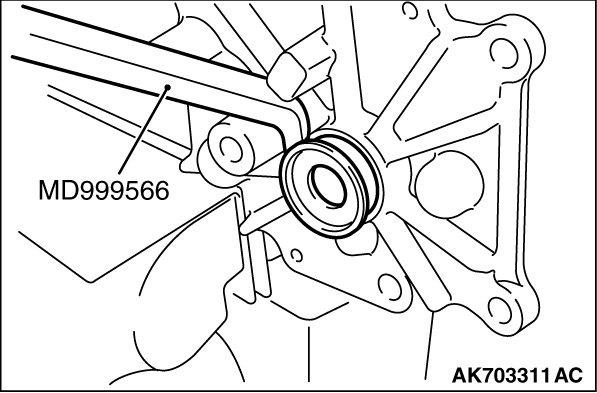

[[B]] OIL SEAL REMOVAL





Using special tool, MD999566, remove the oil seal.

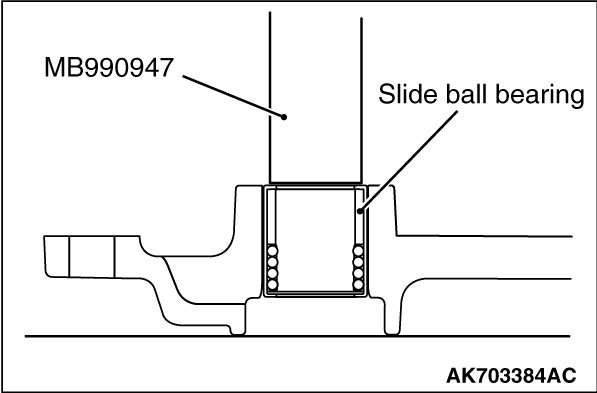

[[C]] SLIDE BALL BEARING REMOVAL





Using special tool, MB990947, remove the slide ball bearing.

ASSEMBLY SERVICE POINTS

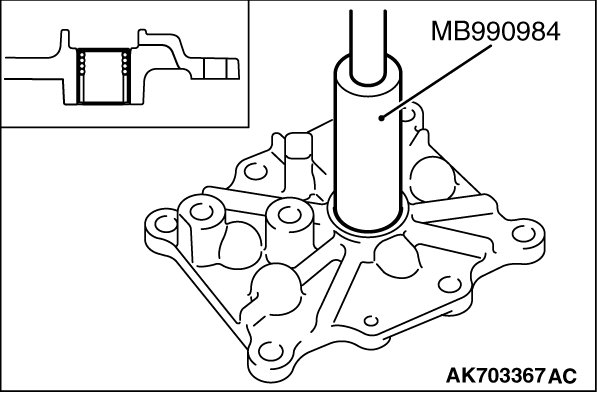

]]A[[ SLIDE BALL BEARING INSTALLATION





Using special tool, MB990984, install the slide ball bearing in alignment with the control housing end face taking care not to let the bearing protrude to the oil seal installing surface.

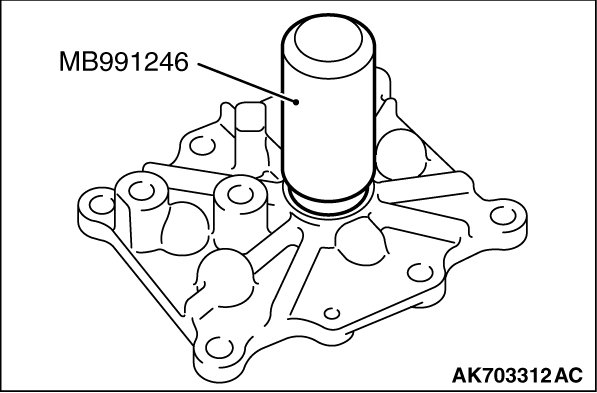

]]B[[ OIL SEAL INSTALLATION





1. Using special tool, MB991246, install the oil seal.
2. Apply specified transmission oil to the oil seal lip area.
Specified transaxle oil: Mitsubishi Genuine DiaQueen New Multi Gear oil SAE 75W-80 (GL-3)


]]C[[ LOCK PIN INSTALLATION





Drive the lock pin all the way into place to the end face from the illustrated direction.

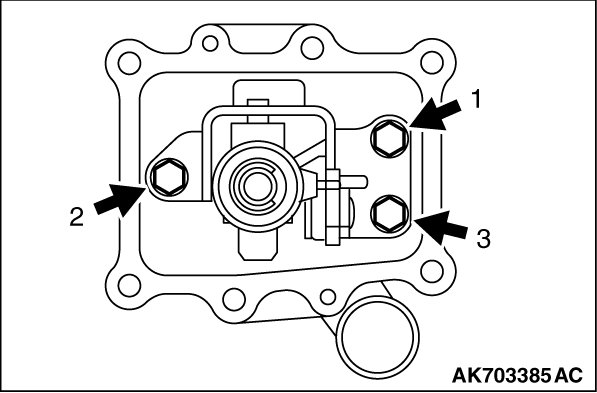

]]D[[ STOPPER BRACKET INSTALLATION





Tighten the stopper bracket mounting bolts to the specified torque in the illustrated order.
