Clutch Housing Disassembly and Assembly

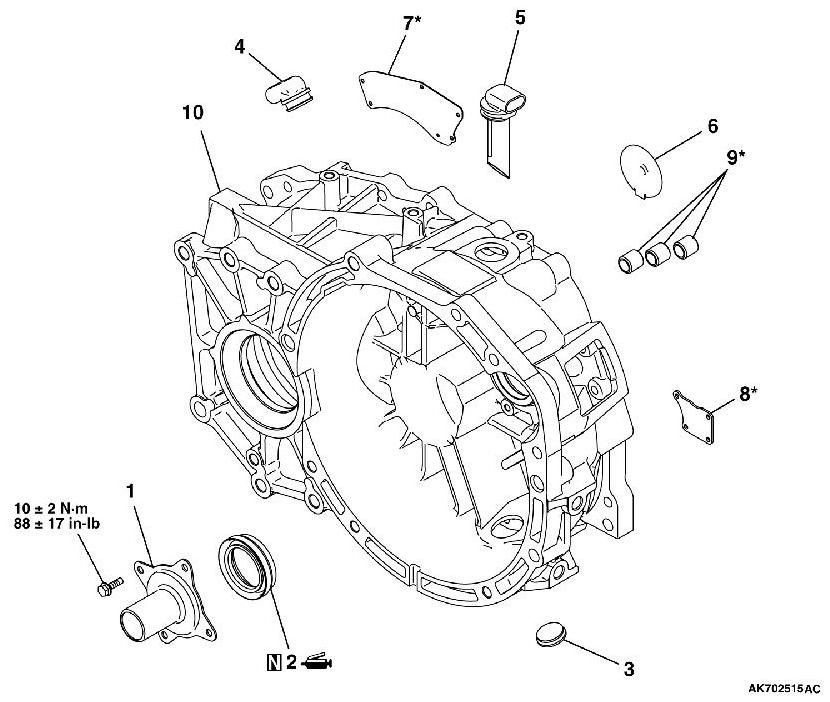

DISASSEMBLY AND ASSEMBLY









NOTE:
*Refer to the assembly service points only when the clutch housing is replaced.

- MB991946: Ply bar
- MB990883: Rear suspension bushing arbor
- MD999547: Oil seal installer
- MB992271: Oil seal installer
- MB992075: Handle

DISASSEMBLY SERVICE POINTS

[[A]] OUTPUT FRONT OIL GUIDE REMOVAL

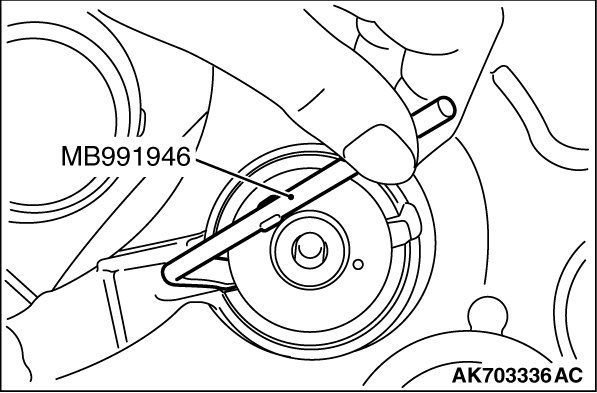

Using special tool, MB991946, remove the output front oil guide.

ASSEMBLY SERVICE POINTS

]]A[[ SLIDE BALL BEARING (FOR SHIFT RAIL) INSTALLATION

CAUTION:

- Normally, it is not necessary to disassemble the slide ball bearings. Install them only when the clutch housing is replaced with a new one.
- Install the bearing with the stamped mark facing upward.

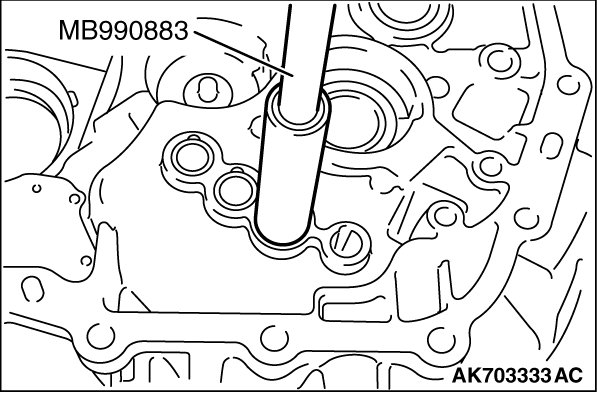

Using special tool, MB990883, install the slide ball bearings on the new clutch housing.

]]B[[ OIL TANK COVER (REV) / OIL TANK COVER (CHG) INSTALLATION

CAUTION:
Normally, it is not necessary to disassemble the oil tank covers.
Install them only when the clutch housing is replaced with a new one.

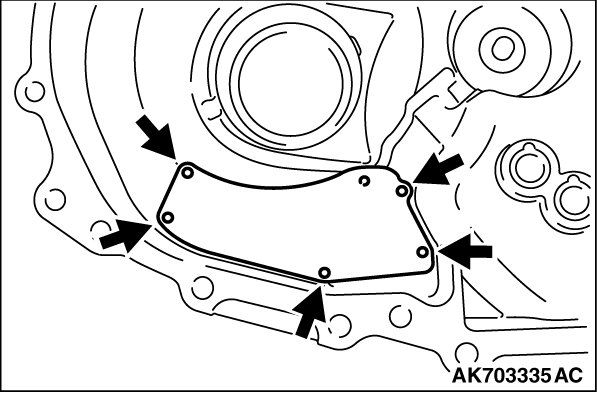

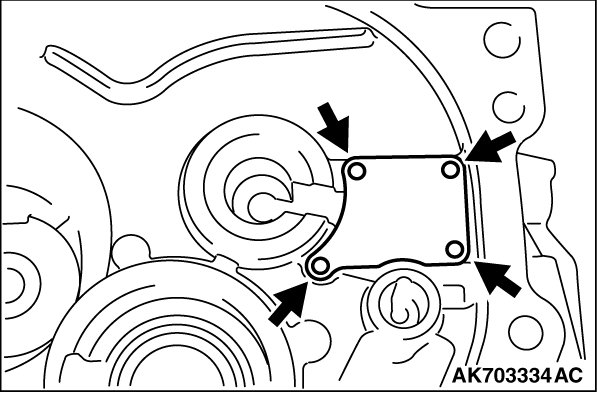

Install the oil tank covers to the new clutch housing. Stake the projections at the illustrated positions of the clutch housing to secure the covers in position.

]]C[[ OUTPUT FRONT OIL GUIDE INSTALLATION

CAUTION:
Make sure that the output front oil guide is installed squarely.

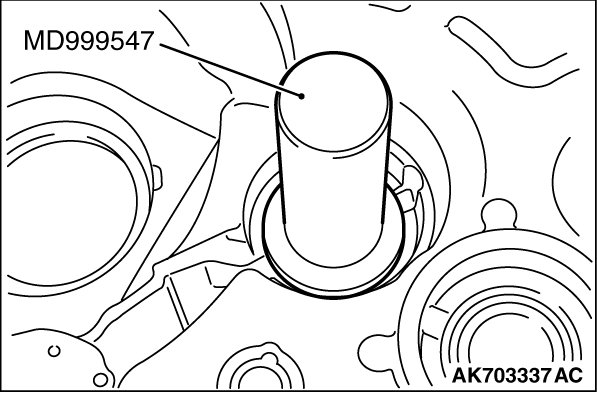

Using special tool, MD999547, drive the oil guide all the way into place to the end face of the clutch housing.

]]D[[ OIL SEAL INSTALLATION

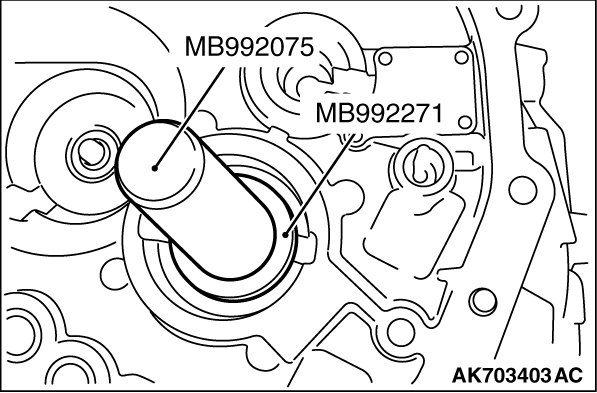

1. Using special tool, MB992271 and MB992075, drive the oil seal squarely into the clutch housing.

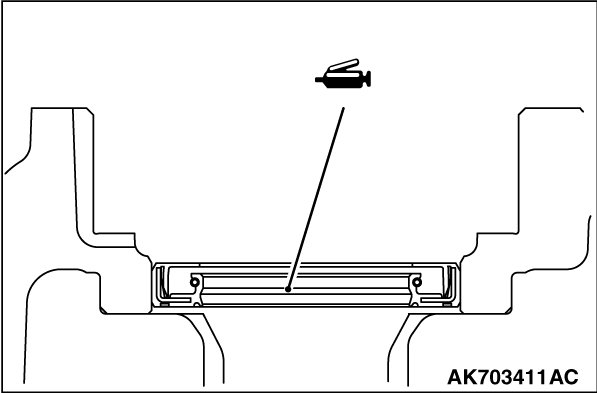

2. Apply specified grease to the oil seal lip area.
Specified grease: Retinax A
