Symptom Chart

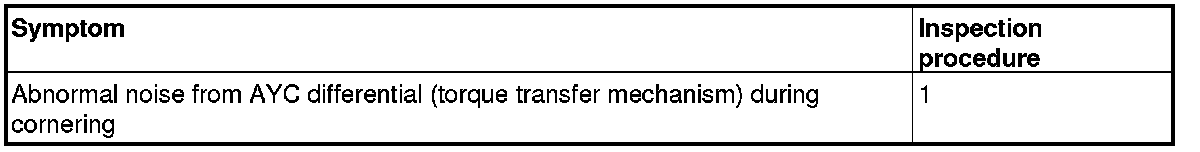

TROUBLE SYMPTOM CHART

CAUTION:
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.

NOTE:
For trouble symptom not mentioned, refer to the Symptom Chart Symptom Chart .
