Overhaul

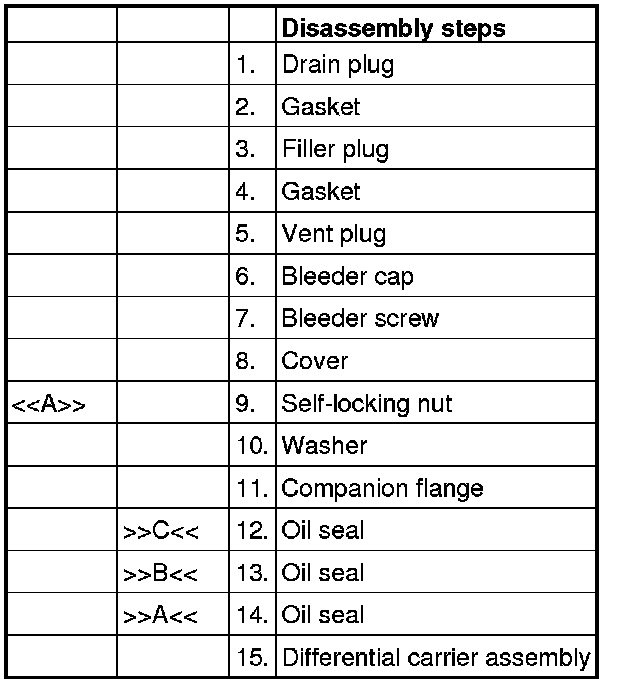

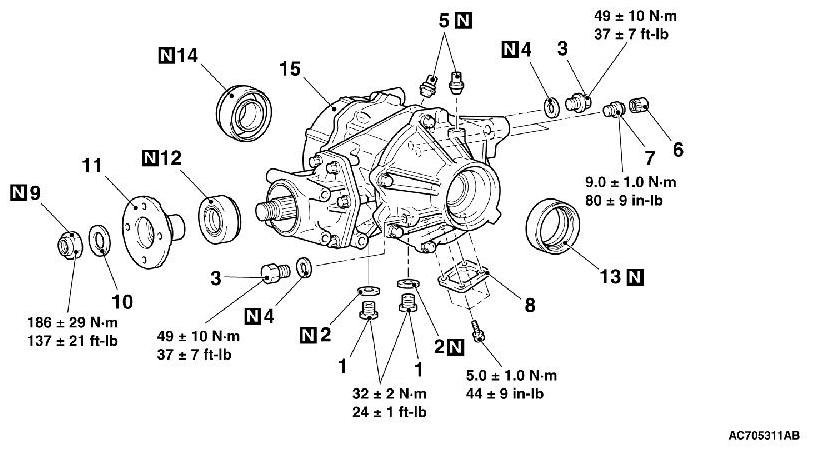

DISASSEMBLY AND REASSEMBLY









Required Special Tools:

- MB990727: Oil Seal Installer
- MB990850: End Yoke Holder
- MB990938: Installer Bar
- MB991245: Lower Arm Bush Ring
- MB991551: Bearing Outer Race Installer

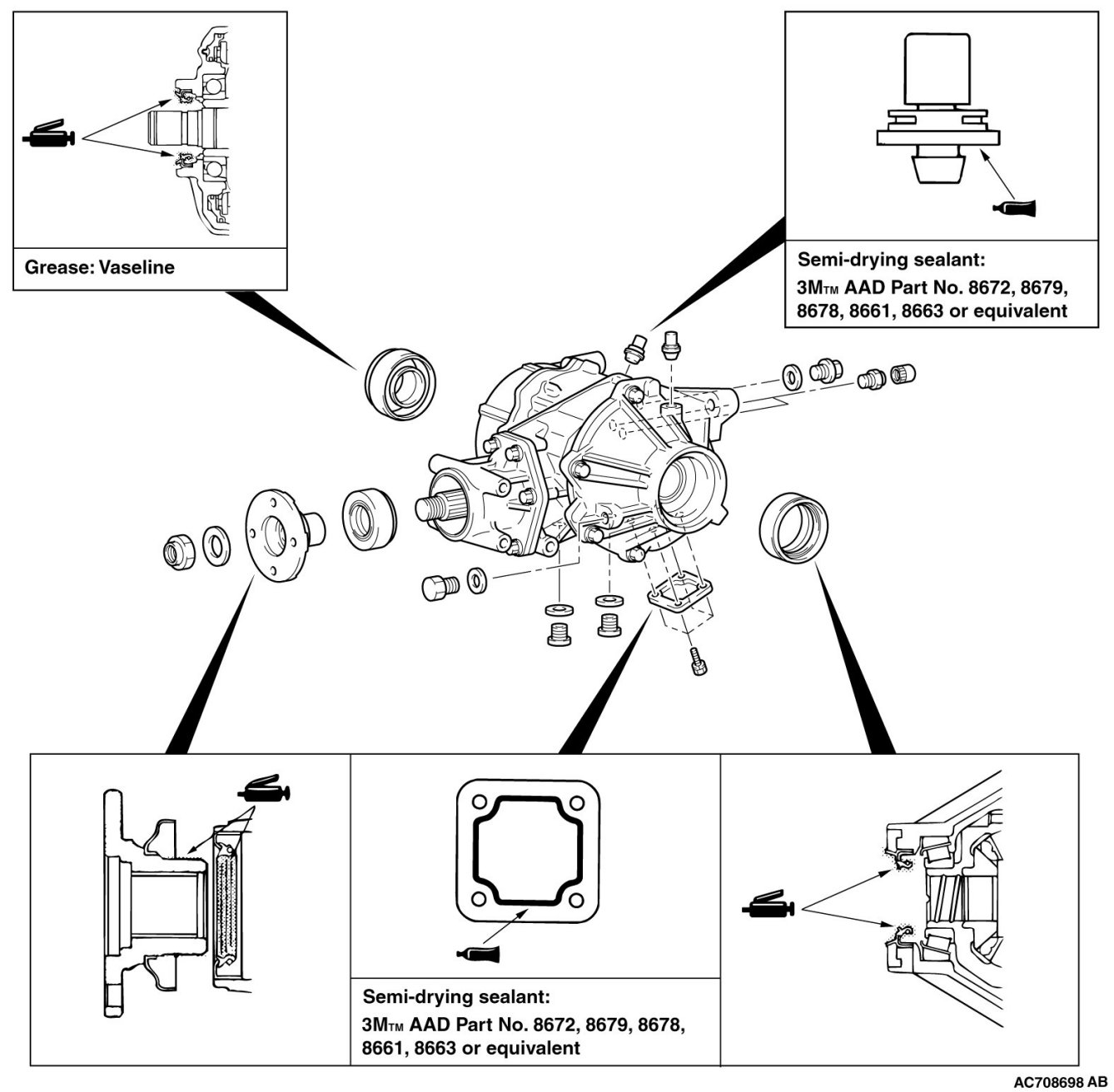

LUBRICATION AND ADHESIVE POINTS





DISASSEMBLY SERVICE POINT

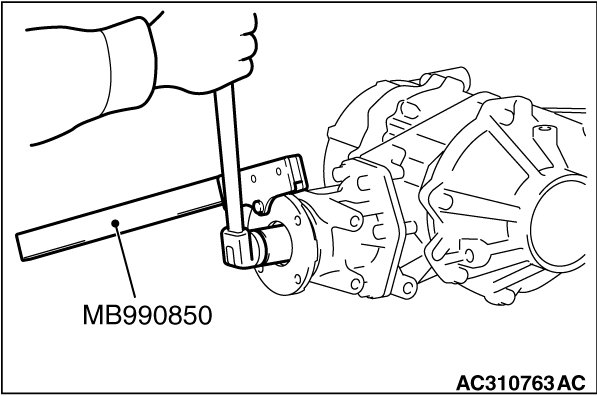

[[A]] SELF-LOCKING NUT REMOVAL





Use special tool MB990850 to hold the companion flange, and then remove the companion flange self-locking nut.

ASSEMBLY SERVICE POINTS

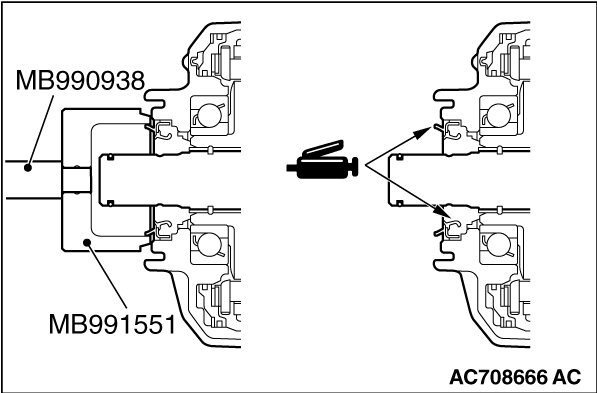

]]A[[ OIL SEAL INSTALLATION





1. Use special tools MB990938 and MB991551 to press-fit the oil seal.
2. Apply specified grease to the oil seal lip and driveshaft oil seal seating area.
Specified grease: Vaseline

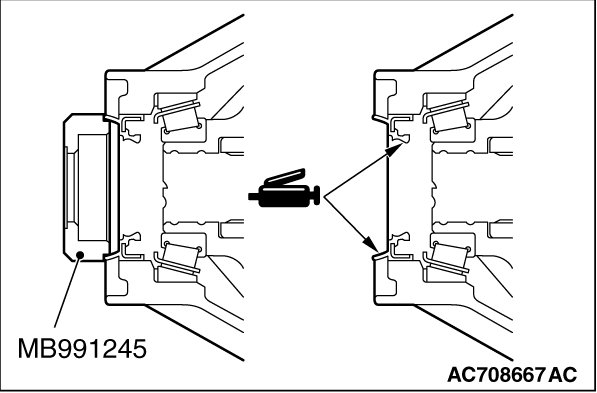

]]B[[ OIL SEAL INSTALLATION





1. Use special tool MB991245 to press-fit the oil seal.
2. Apply multi-purpose grease to the oil seal lip and driveshaft oil seal seating area.

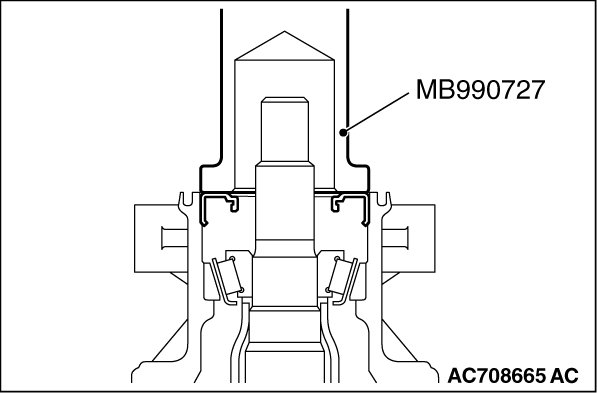

]]C[[ OIL SEAL INSTALLATION





Use special tool MB990727 to press-fit the oil seal.
