Hydraulic Hose: Service and Repair

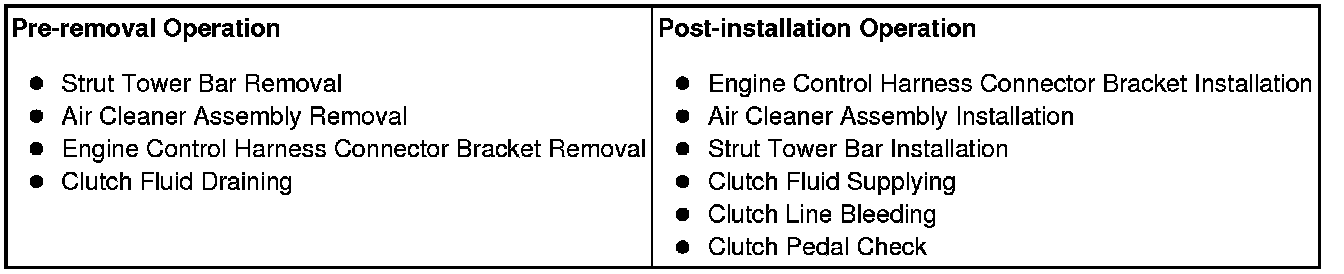

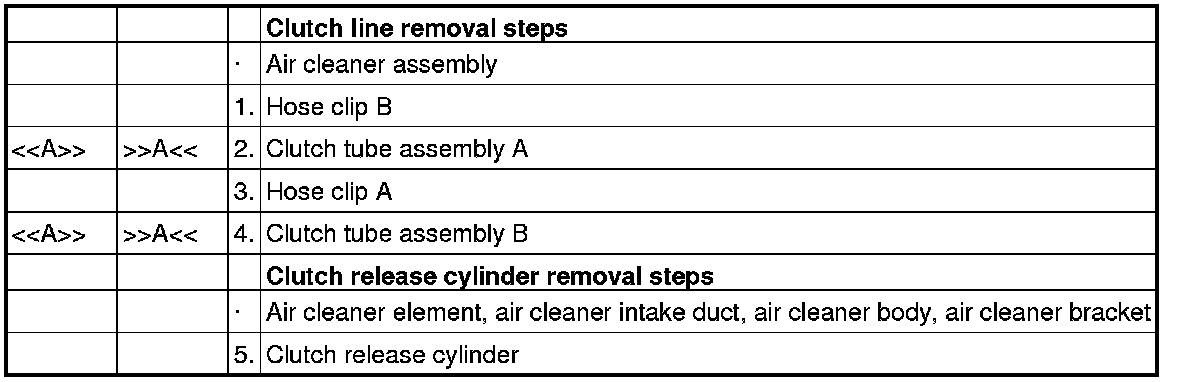

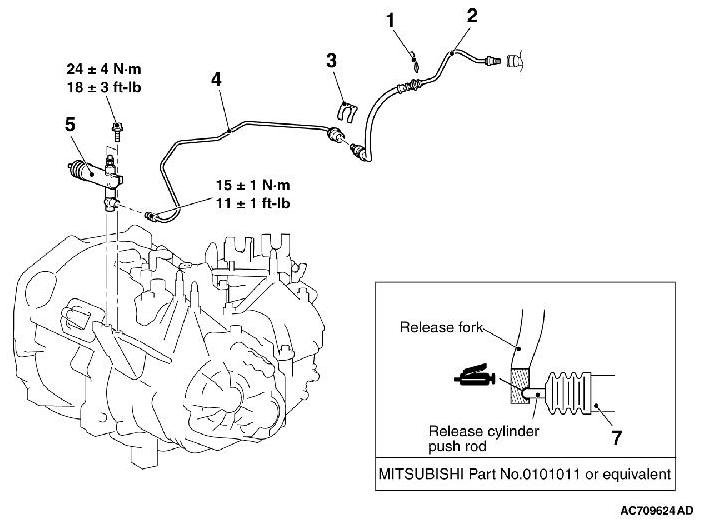

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINTS

[[A]] CLUTCH TUBE ASSEMBLY DISCONNECTION









CAUTION:

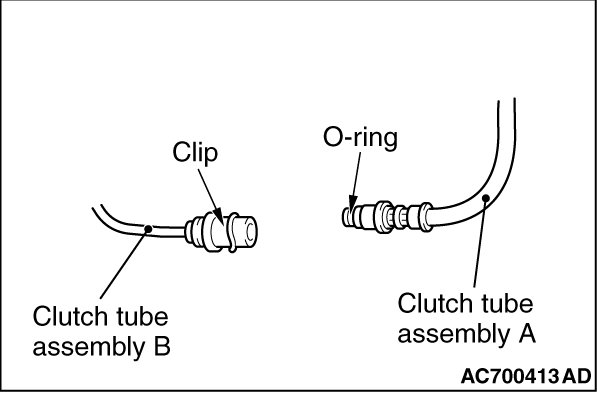

- Do not remove O-rings and clips from the clutch tube assembly and clutch master cylinder.
- When the O-ring or clip is damaged, always replace the relevant clutch tube assembly or clutch master cylinder.

INSTALLATION SERVICE POINTS

]]A[[ CLUTCH TUBE ASSEMBLY INSTALLATION









CAUTION:

- When connecting each part, check that the O-ring and clip are not damaged.
- If any connection area or O-ring is dirty, clean with the clutch fluid.

Assemble the clips to the clutch master cylinder and clutch tube assembly B. Then, connect the clutch tube assembly A.
