Overhaul

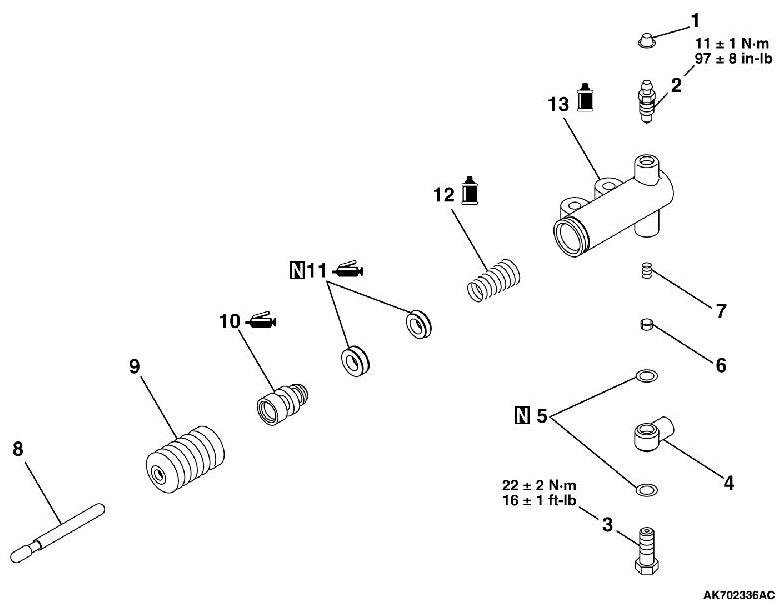

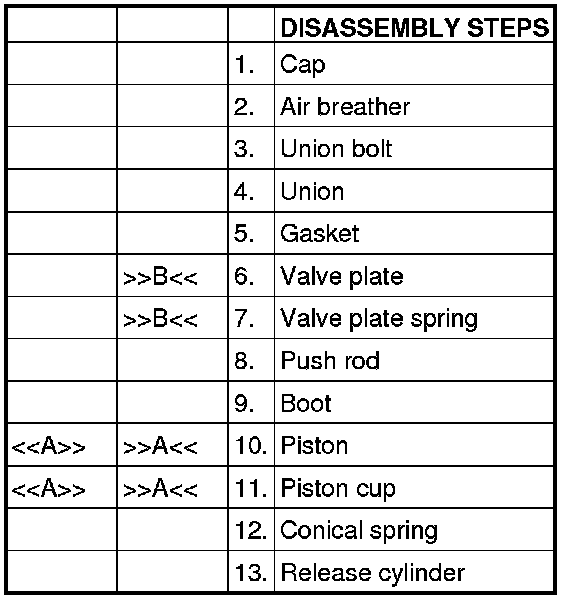

DISASSEMBLY AND ASSEMBLY









DISASSEMBLY SERVICE POINT

[[A]] PISTON / PISTON CUP REMOVAL

CAUTION:

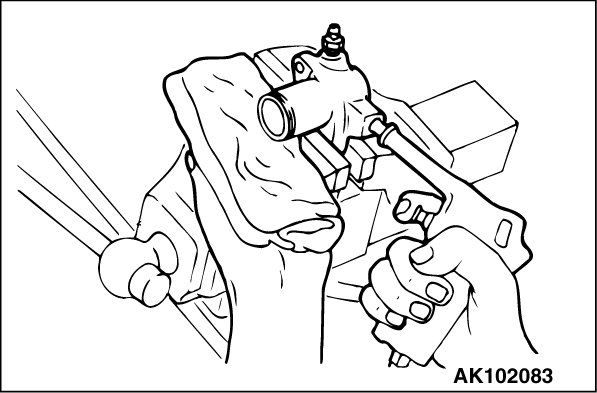

Covering with a shop towel or the like, apply compressed air slowly to prevent the piston from popping up and brake fluid from splashing.





Using compressed air, remove the piston assembly from the release cylinder.

ASSEMBLY SERVICE POINT

]]A[[ PISTON CUP / PISTON INSTALLATION

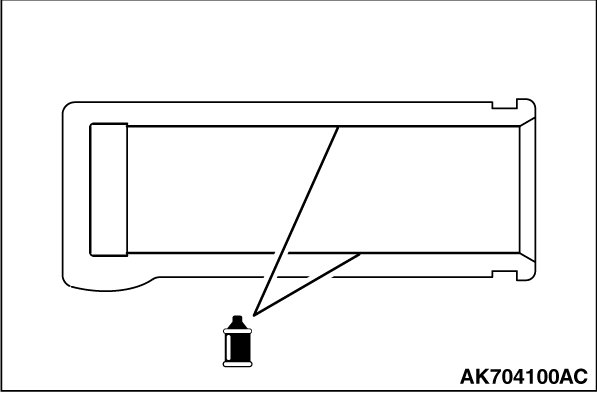

1. Apply brake fluid to the entire inner surface of the release cylinder.
Specified brake fluid: Brake fluid DOT 3 or DOT 4

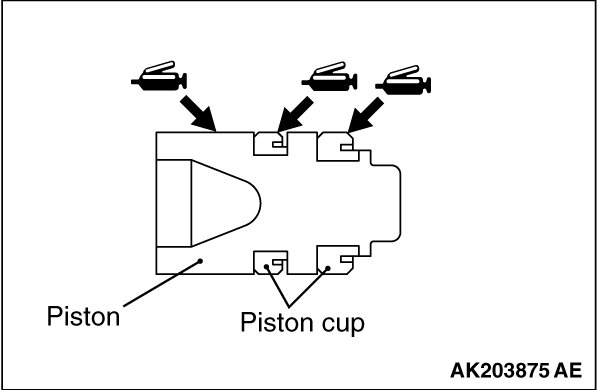

2. Apply grease to the piston and piston cups and insert the piston assembly into the release cylinder.
Specified grease: Rubber grease


]]B[[ VALVE PLATE SPRING / VALVE PLATE INSTALLATION

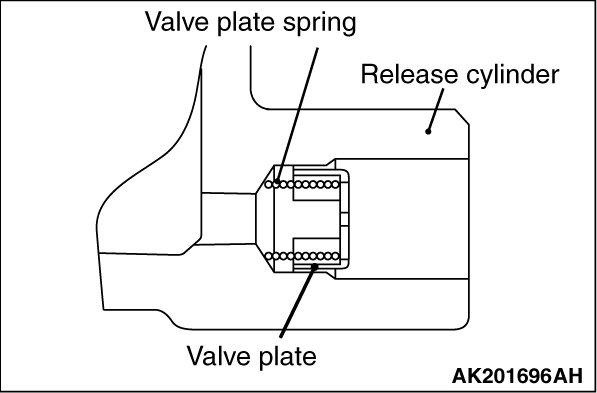

Install the valve plate spring and valve plate into place with the large end of the spring to the valve plate side.
