Transmission Cooler: Service and Repair

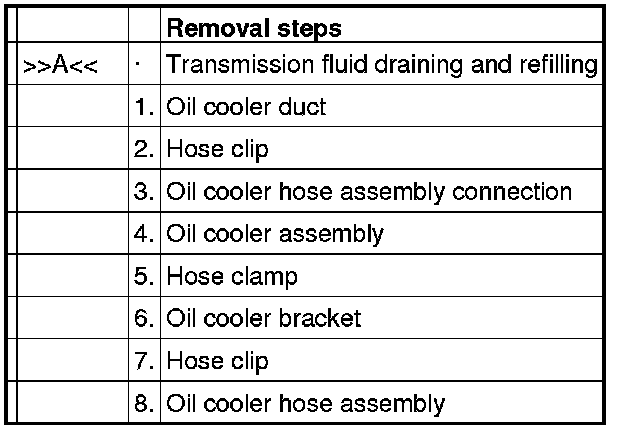

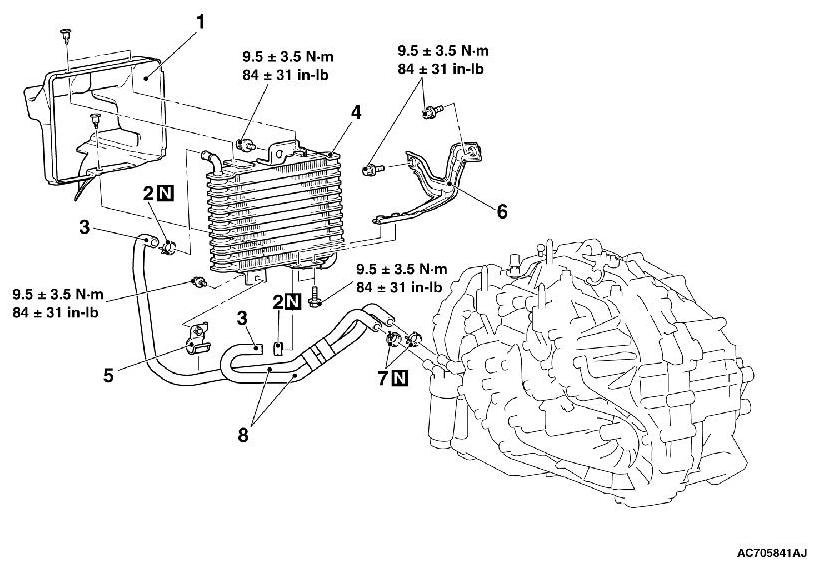

REMOVAL AND INSTALLATION

CAUTION:
Do not refill the fluid when replacing the transaxle assembly and the oil cooler with new ones at the same time.

NOTE:

- The new transaxle assembly is filled with 7.6 dm3 (8.0 qt) of the fluid (including the oil cooler).
- The transaxle assembly has a sealed structure, and the fluid does not drain out from parts other than the oil cooler hose.













INSTALLATION SERVICE POINT

]]A[[ TRANSMISSION FLUID REFILLING

CAUTION:
Refill 6.1 dm3 (6.4 qt) of the transmission fluid.

NOTE:
The fluid capacity of the oil cooler assembly and the oil cooler hose assembly is 0.6 dm3 (0.6 qt).

CAUTION:

- If the oil cooler is repaired, fill new fluid and check the transmission fluid level. (Refer to Transmission Oil Level Check .)
- When the oil cooler is not repaired, the drained fluid can be reused if it is between the replacement intervals.
