Freeze Frame Data Check

DIAGNOSIS FUNCTION

FREEZE FRAME DATA CHECK

Various data of when the diagnostic trouble code is determined is obtained, and the status of that time is stored. By analyzing each data using the scan tool, troubleshooting can be performed efficiently.
Display items of the freeze frame data are as follows.

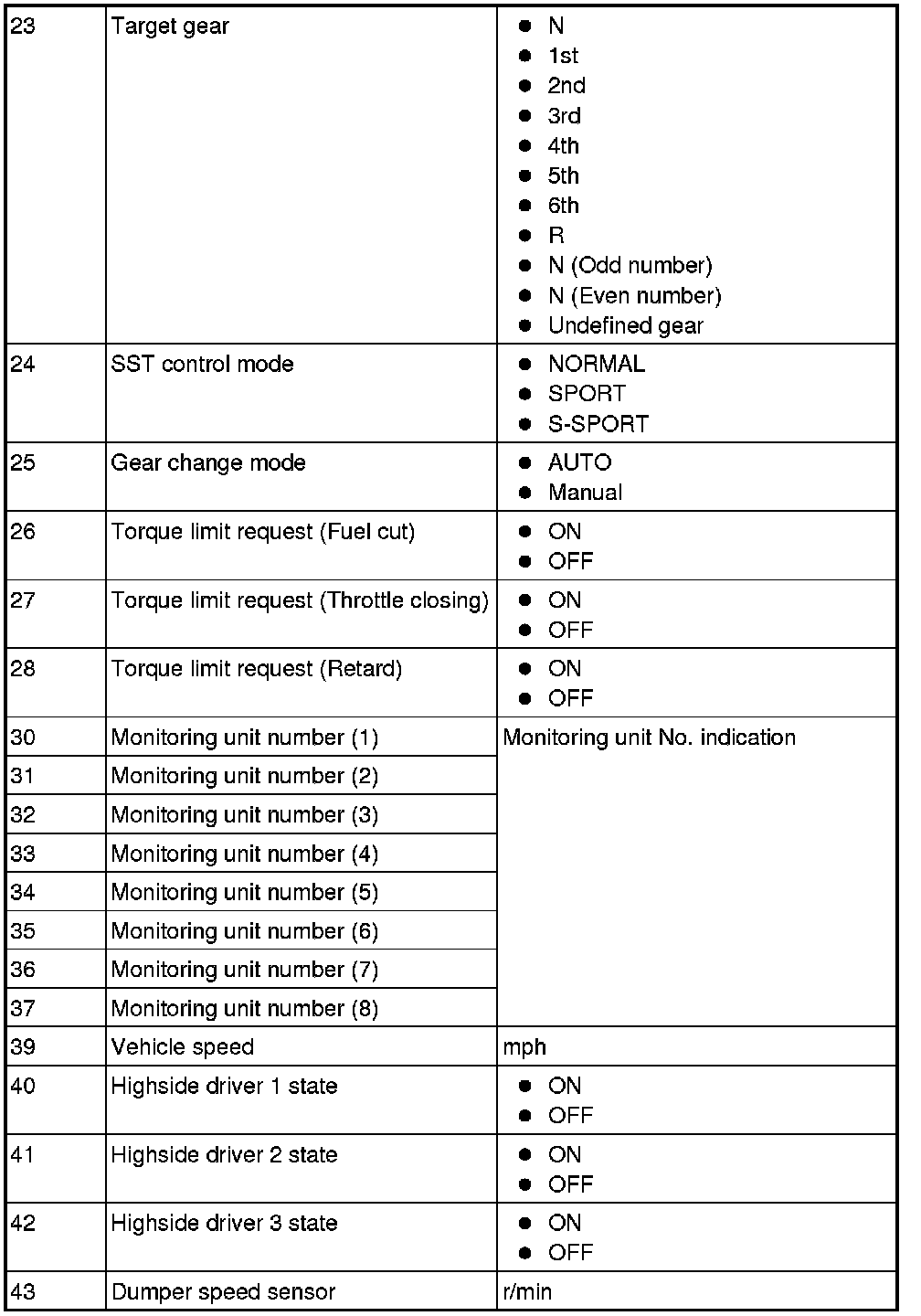

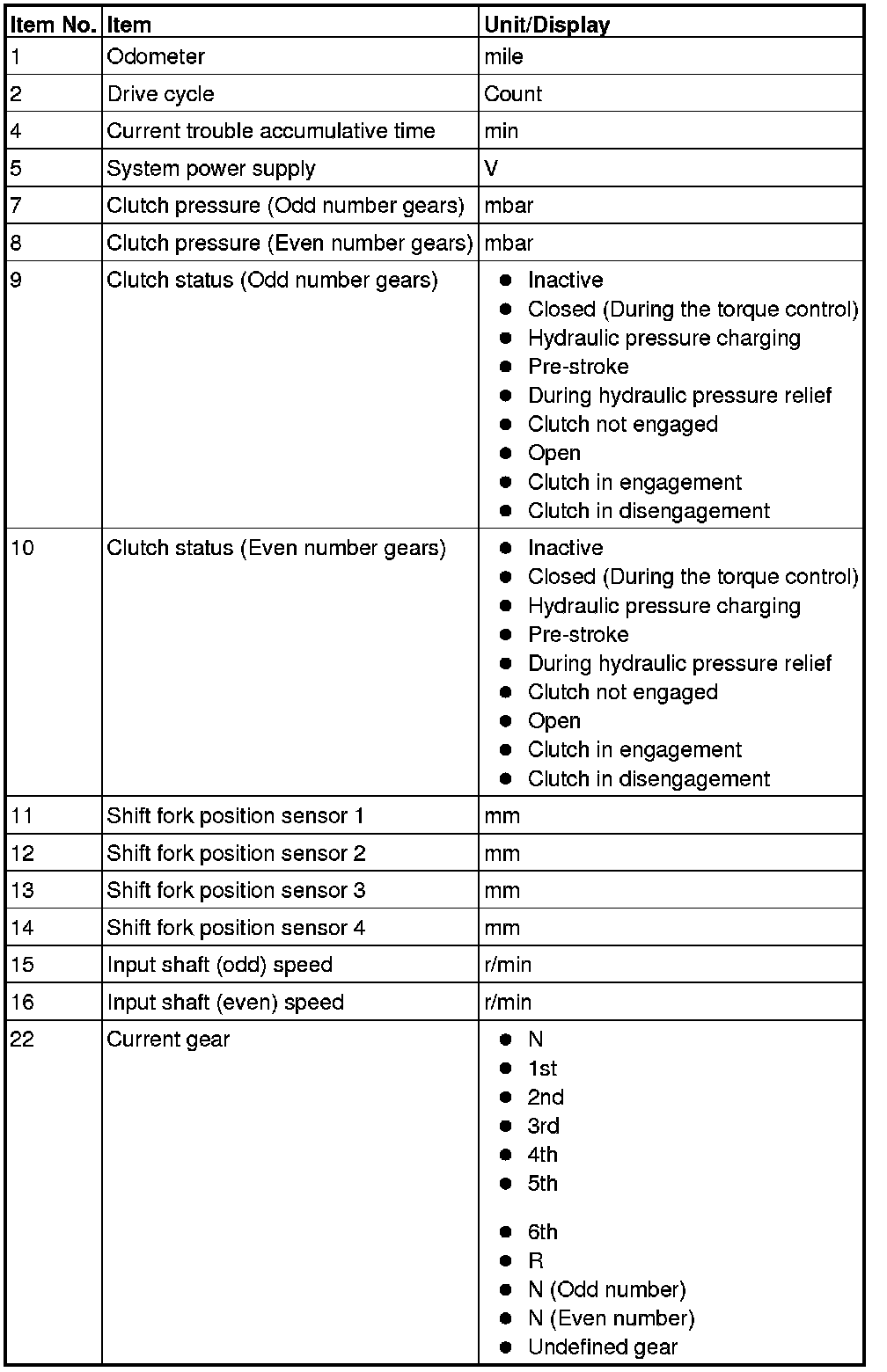

FREEZE FRAME DATA REFERENCE TABLE
