Warning Indicator

DIAGNOSIS FUNCTION

WARNING INDICATOR

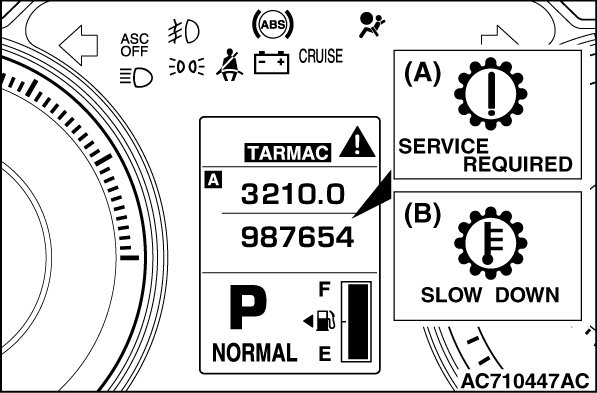

When a malfunction occurs in the TC-SST system, the figure (A) remains displayed on the information screen of multi information display.
If the figure (A) remains displayed on the information screen of multi information display, check whether or not a diagnostic trouble code is set.
NOTE:
When the figure (B) is displayed on the information screen of multi information display, the transmission fluid temperature is high.
