Fail-Safe Function

DIAGNOSIS FUNCTION

FAIL-SAFE FUNCTION

If an abnormality occurs to the signal of sensors, switches, solenoids, or others, TC-SST-ECU performs a control for the driver safety and system protection. The control contents are as follows.

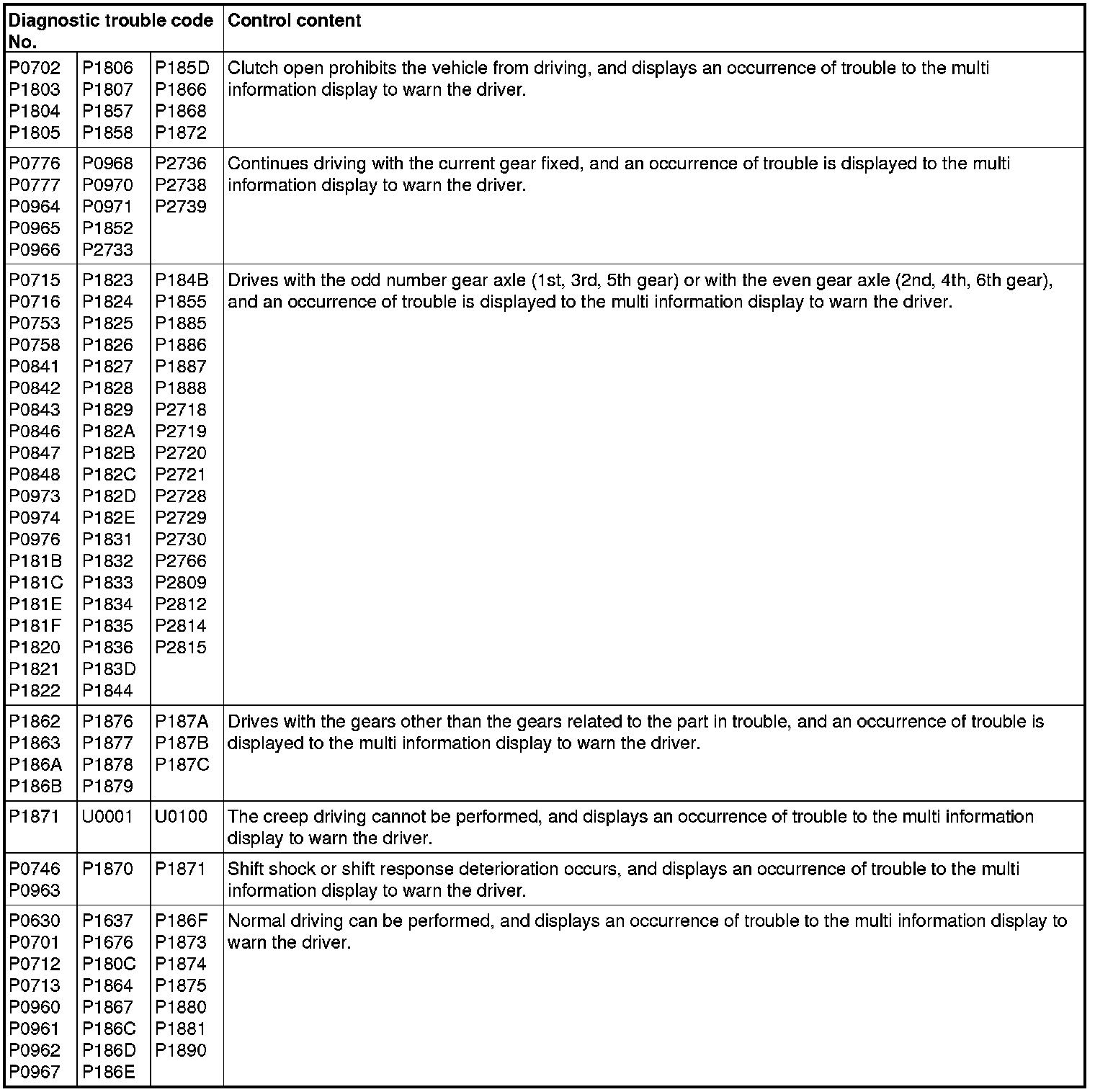

FAIL-SAFE REFERENCE TABLE
