[h1]DIAGNOSIS FUNCTION[/h1]

[h2]WARNING INDICATOR[/h2]

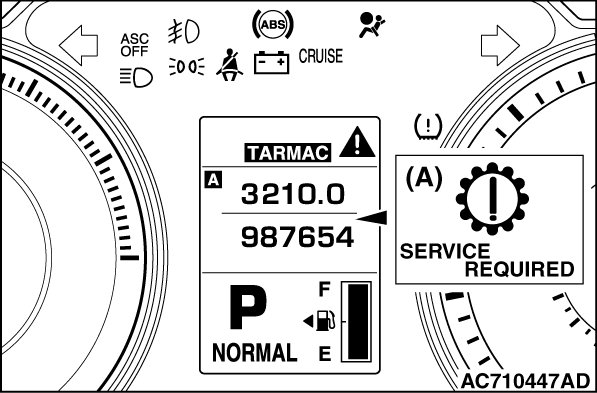

When a malfunction occurs to the shift lever, the figure (A) remains displayed on the information screen of multi information display.
If the figure (A) remains displayed on the information screen of multi information display, check whether or not a diagnostic trouble code is set.

[h2]FAIL-SAFE FUNCTION[/h2]

If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the shift lever-ECU performs a control for the driver safety and system protection. The control contents are as follows.

FAIL-SAFE REFERENCE TABLE





[h2]HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)[/h2]

Required Special Tools:

- MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827 M.U.T.-III USB Cable
- MB991910 M.U.T.-III Main Harness A (Vehicles with CAN communication system)





CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK"
(OFF) position before connecting or disconnecting scan tool MB991958.

1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.
NOTE:
When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.

7. Start the scan tool system on the personal computer.
NOTE:
Disconnecting scan tool MB991958 is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position.

[h2]FREEZE FRAME DATA CHECK[/h2]

Data of when the diagnostic trouble code is determined is obtained, and the status of ACD is stored. By analyzing each data using the scan tool, troubleshooting can be carried out efficiently.
Display items of the freeze frame data are as follows.

FREEZE FRAME DATA REFERENCE TABLE
