Shift Lever Operation Check

SHIFT LEVER OPERATION CHECK





1. 2. Check that the engine starts when the shift lever is in the N (Brake pedal is depressed) or P range, and that the engine does not start in other ranges.
3. Start the engine, and release the parking brake. Then, check that the vehicle travels forward when the shift lever is in the D range or the mode is set to the manual mode, and that the vehicle travels backward when the shift lever is set in the R range.
4. Stop the engine.
5. Turn ON the ignition switch, and move the shift lever from the P to R range. Check that the back-up light becomes on at this time.
NOTE:

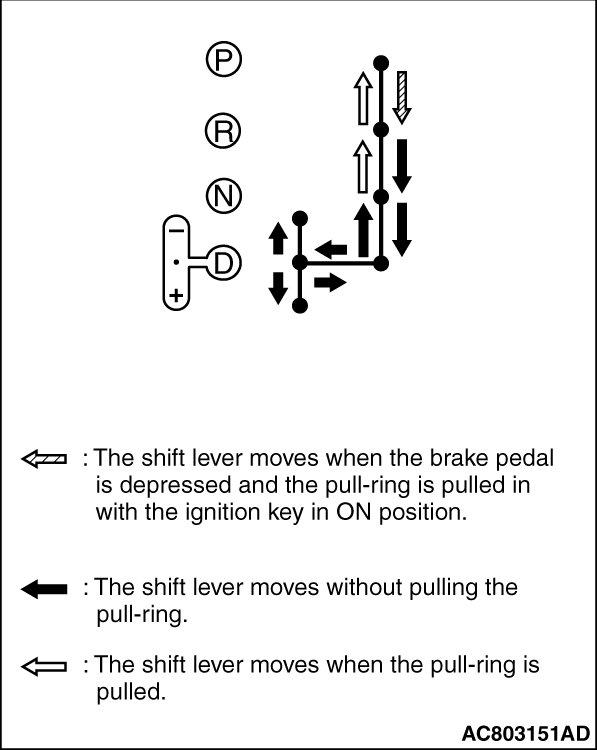

Because the misoperation preventive device is equipped, the shift lever cannot be moved out of the P position unless the ignition switch is turned to the position other than LOCK (OFF) and the brake pedal is depressed.
