Shift Interlock: Service and Repair

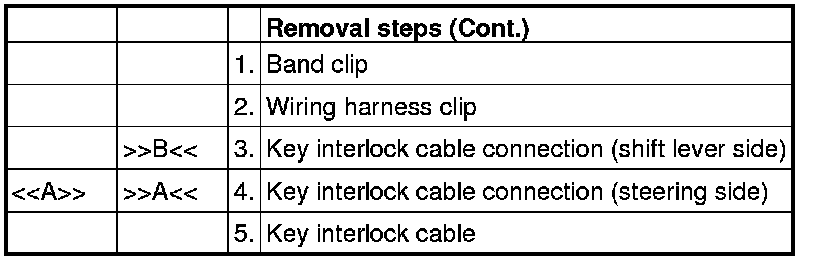

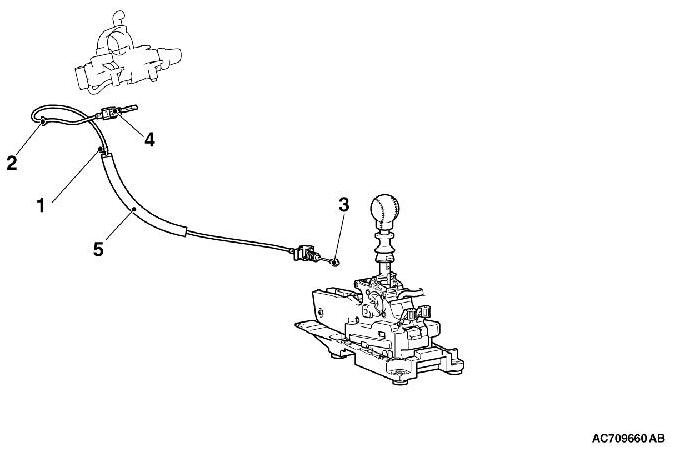

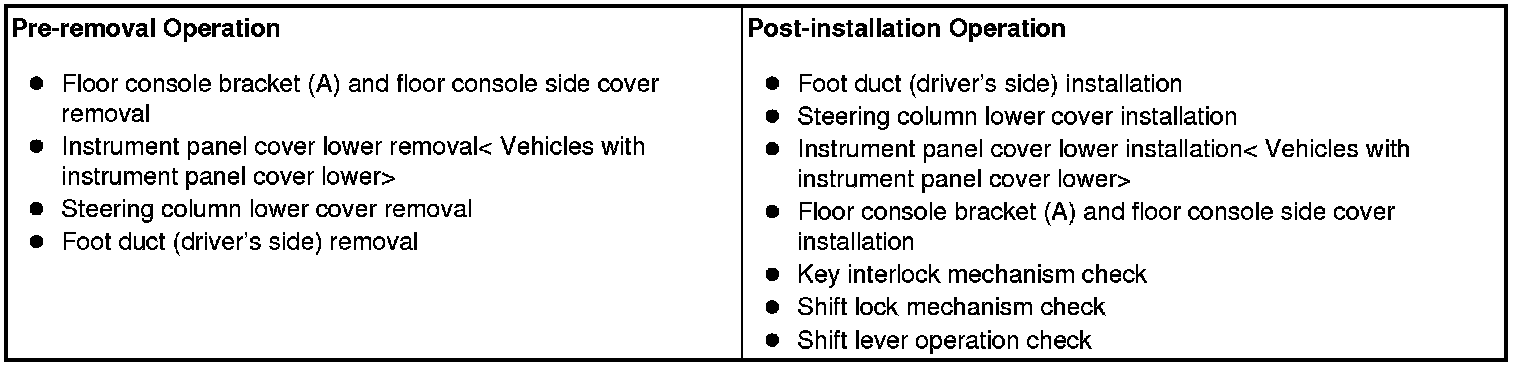

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] KEY INTERLOCK CABLE (STEERING SIDE) REMOVAL

Turn the ignition switch to the ACC position and then pull the key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINTS

]]A[[ KEY INTERLOCK CABLE (STEERING SIDE) INSTALLATION

Turn the ignition switch to the ACC position and then install the key interlock cable to the ignition key cylinder.

]]B[[ KEY INTERLOCK CABLE (SHIFT LEVER SIDE) INSTALLATION

CAUTION:
Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.

1. Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.





2. Install the tip of key interlock cable to the lock cam pin of shift lever assembly, using a caution not to twist the inner cable.
3. Install the adjuster case with its lock guide pulled up (unlocked).
4. With the lock cam pin pushed in the direction B as shown in the figure to remove the slack from the key interlock cable, securely lower the lock guide and lock it.
NOTE:
The lock position of the key interlock cable is automatically adjusted by a spring.
