Seals and Gaskets: Service and Repair

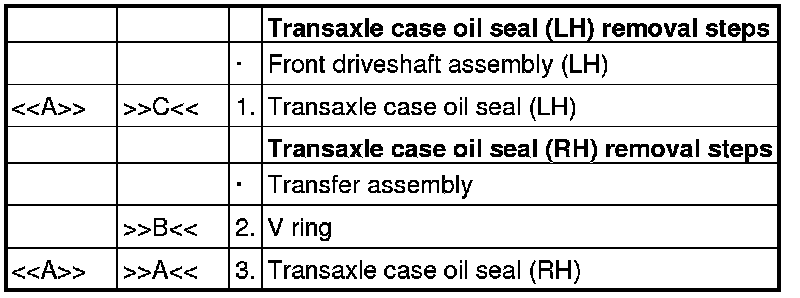

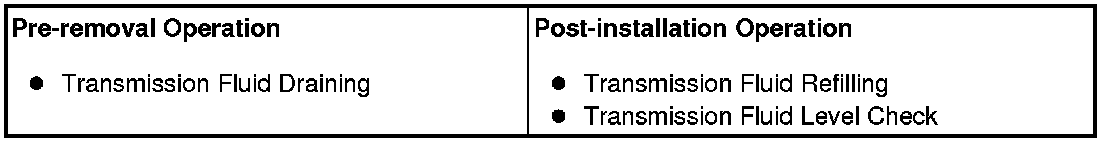

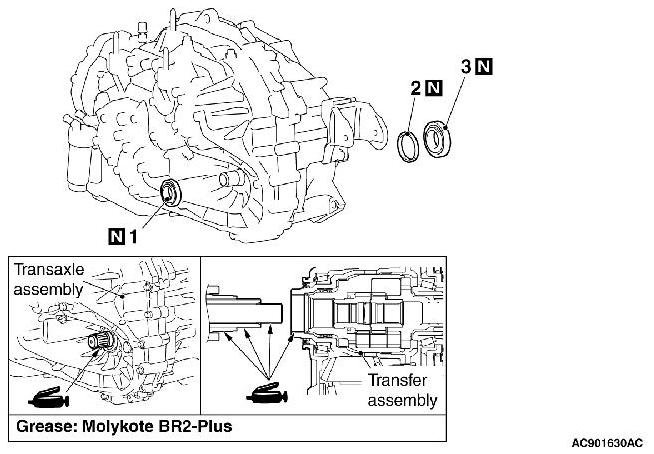

REMOVAL AND INSTALLATION













- MB992310: Oil seal installer
- MB992311: Oil seal guide
- MB992312: Oil seal installer
- MB992313: Oil seal guide
- MB992314: V ring guide

REMOVAL SERVICE POINTS

[[A]] TRANSAXLE CASE OIL SEAL (LH)/TRANSAXLE CASE OIL SEAL (RH) REMOVAL









1. Insert the tapping screw (dia. 3 mm [0.1 inch]) to one of four hollows (round shape) on the oil seal by turning it 2 or 3 times.





2. Tap the opposite side of the inserted tapping screw using a knock pin punch to press in the oil seal approximately 1 mm (0.04 inch).





3. Hold the inserted tapping screw with pliers or similar tools, and remove the oil seal.
NOTE:
If the transaxle case oil seal (RH) is replaced, the V-ring must also be replaced.

INSTALLATION SERVICE POINTS

]]A[[ TRANSAXLE CASE OIL SEAL (RH) INSTALLATION





1. Apply the transaxle oil to the oil seal guide (special tool: MB992313). Insert the oil seal to oil seal guide (special tool: MB992313).





2. Use special tool oil seal installer (special tool: MB992312) to install the oil seal to the transaxle case.

]]B[[ V RING INSTALLATION





1. Clean the spline with a brush or the like.





2. Apply the transaxle oil to the V ring guide (special tool: MB992314). Insert the V ring to V ring guide (special tool: MB992314), and install the V ring to the transaxle case.
3. Check that the V ring is installed securely.

]]C[[ TRANSAXLE CASE OIL SEAL (LH) INSTALLATION





1. Apply the transaxle oil to the oil seal guide (special tool: MB992311). Insert the oil seal to oil seal guide (special tool: MB992311).





2. Use special tool oil seal installer (special tool: MB992310) to install the oil seal to the transaxle case.
