Fluid Filter - ASMT: Service and Repair

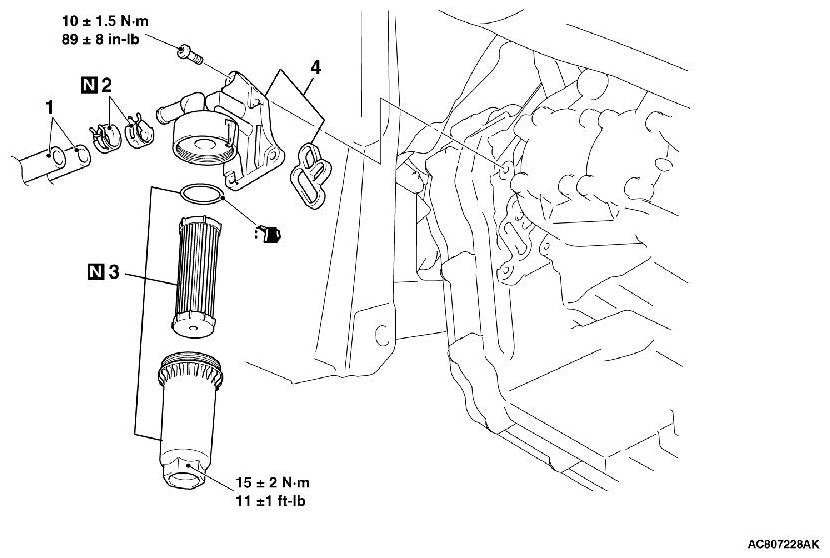

REMOVAL AND INSTALLATION

CAUTION:
If a fluid leakage is present in the area around the oil filter bracket, clean around the oil filter bracket. After cleaning, warm up the engine. Only if a fluid leakage is present in the area around the oil filter bracket again, replace the oil filter bracket assembly.













REMOVAL SERVICE POINT

[[A]] TRANSMISSION FLUID DRAINING

Drain the fluid in the transaxle assembly and the oil cooler.

INSTALLATION SERVICE POINTS

]]A[[ OIL FILTER BRACKET ASSEMBLY INSTALLATION

1. Completely degrease the oil filter bracket assembly installation surface on the transaxle side.

2. Remove the gasket from the oil filter bracket assembly, and completely degrease the groove of the oil filter bracket assembly (gasket installation area) and the gasket. Then, install the gasket to the groove of the oil filter bracket assembly.

3. Tighten the screws to the specified torque.
Tightening torque: 10± 1.5Nm (89± 8 in-lb)


]]B[[ TRANSMISSION FLUID REFILLING

CAUTION:
Refill 6.2 dm3 (6.6 qt) of the transmission fluid.

NOTE:
The fluid capacity of the oil cooler assembly and the oil cooler hose is 0.6 dm3 (0.6 qt), and the fluid capacity of the oil filter case assembly is 0.1 dm3 (0.1 qt).

CAUTION:

- If the fluid leakage from the oil filter is repaired, fill new fluid and check the transmission fluid level. (Refer to Transmission Oil Level Check .)
- When the oil filter is replaced, the drained fluid can be reused if it is between the replacement intervals.
