Front Axle

HUB BOLT REPLACEMENT

Required Special Tools:

- MB990767: Front Hub and Flange Yoke Holder
- MB991618: Hub Bolt Remover

1. Remove the front caliper assembly and front disk brake, and retain the front caliper assembly with a wire and the like to prevent from falling (Refer to Front Axle Hub Assembly Removal and Installation [Flange Nut Type]).





2. Use special tool MB991618 to remove the hub bolts.

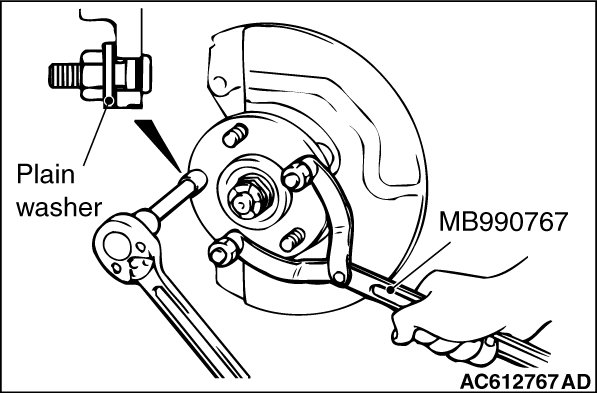

3. Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.
4. Install the front brake disk and the front caliper assembly (Refer to Front Axle Hub Assembly Removal and Installation [Flange Nut Type]).
