Front Suspension

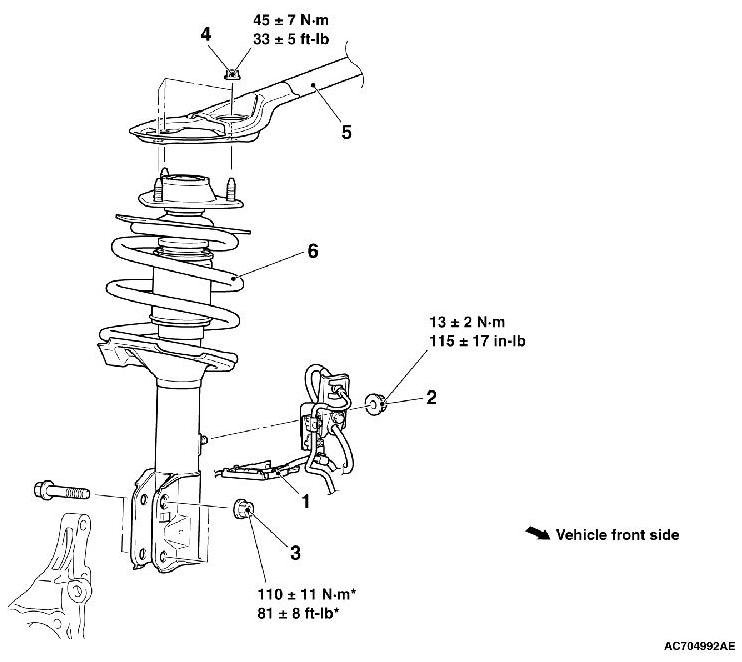

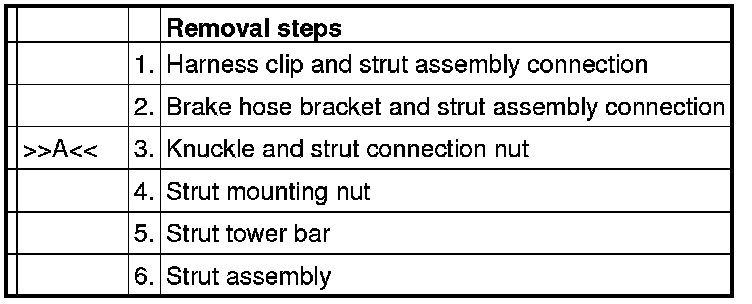

REMOVAL AND INSTALLATION

CAUTION:
The part indicated by * is the bolt/nut with friction coefficient stabilizer. During removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.













INSTALLATION SERVICE POINT

]]A[[ KNUCKLE AND STRUT CONNECTION NUT INSTALLATION

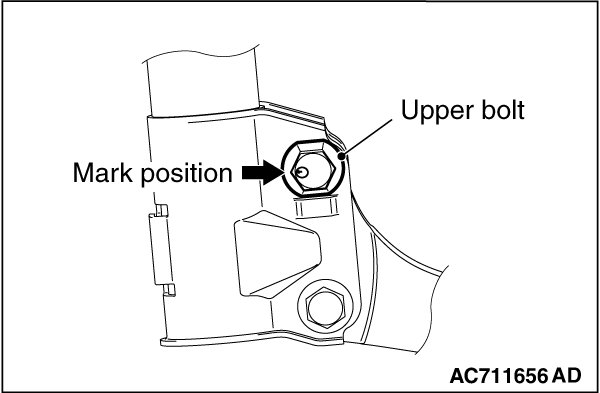

Locate the knuckle and strut connection upper bolt's mark position as shown in the figure and tighten it.
