Front Suspension

INSPECTION

- Check the bushings for wear and deterioration.
- Check the stabilizer bar for deterioration or damage.
- Check all bolts for condition and straightness.

STABILIZER LINK BALL JOINT ROTATION STARTING TORQUE CHECK

Required Special Tool:

- MB990326: Preload socket

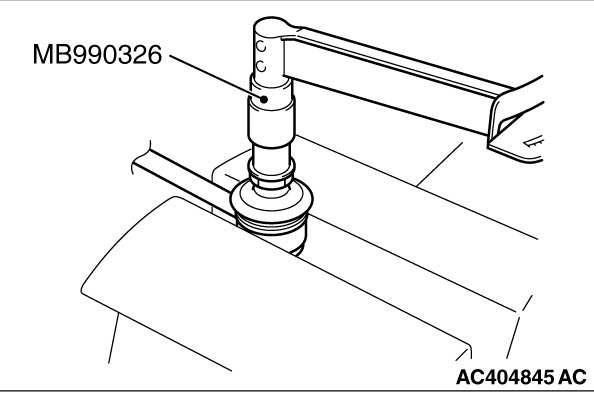

1. Move the stabilizer link ball joint stud back and forth for several times, install the stud with nut, and measure the stabilizer link ball joint rotation torque using the preload socket special tool MB990326.
Standard value:







2. If the measured value exceeds the standard value, replace the stabilizer link. (Refer to Front Suspension.)
3. When the measured value stays within the standard range, if the stabilizer link ball joint has looseness or gritty feeling, it is judged as unusable. Then, replace the stabilizer link. (Refer to Front Suspension.)

STABILIZER LINK BALL JOINT DUST COVER CHECK

Refer to Lower Arm Ball Joint Dust Cover Inspection.
