Rear Suspension

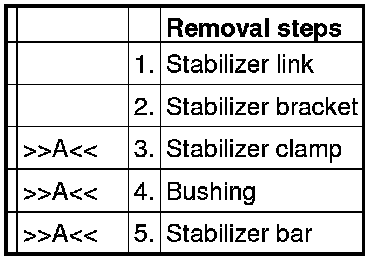

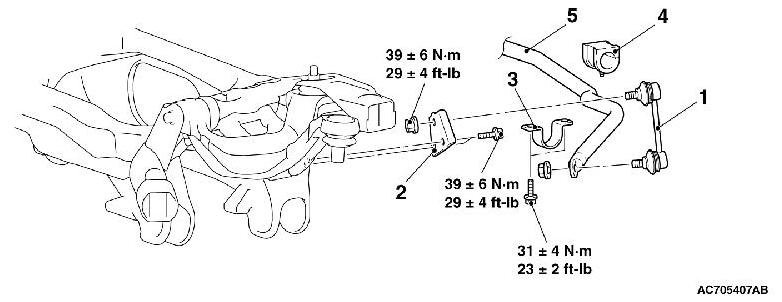

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINT

]]A[[ STABILIZER BAR/BUSHING/STABILIZER CLAMP INSTALLATION

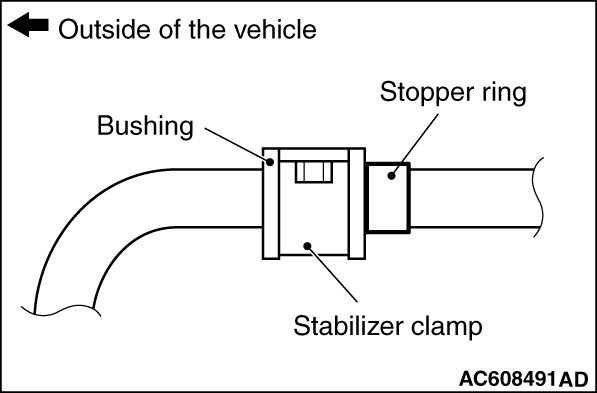

1. Install the stabilizer clamp at the position shown in the figure, and tighten the stabilizer clamp mounting bolt.

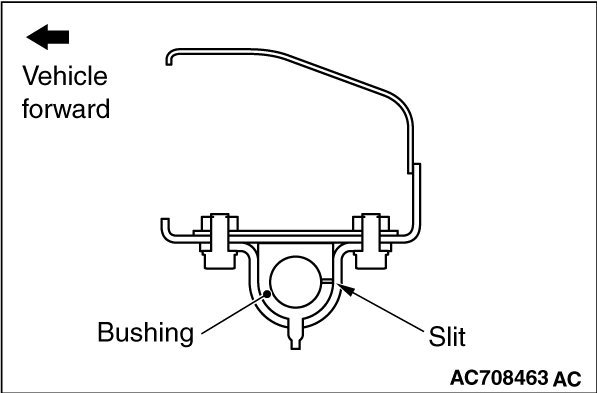

2. Install the bushing with the bushing slit directed toward the rear of the vehicle.
