Tie Rod Boot: Service and Repair

BALL JOINT AND STEERING LINKAGE SEALS (INSPECT FOR GREASE LEAKS AND DAMAGE)





1. These components, which are permanently lubricated at the factory, do not require periodic lubrication. Damaged seals and boots should be replaced to prevent leakage or grease contamination.

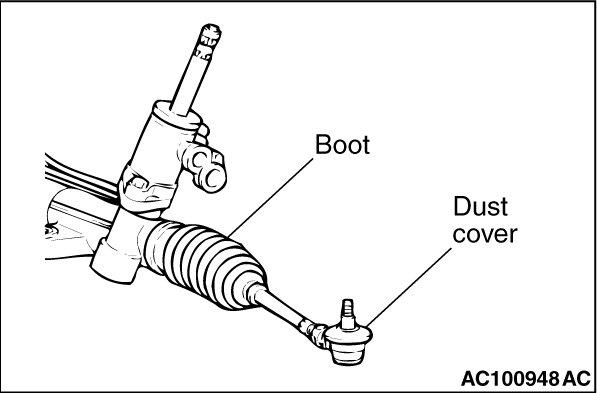

2. Inspect the dust cover and boots for proper sealing, leakage and damage, and replace them if defective.
