Removal and Replacement

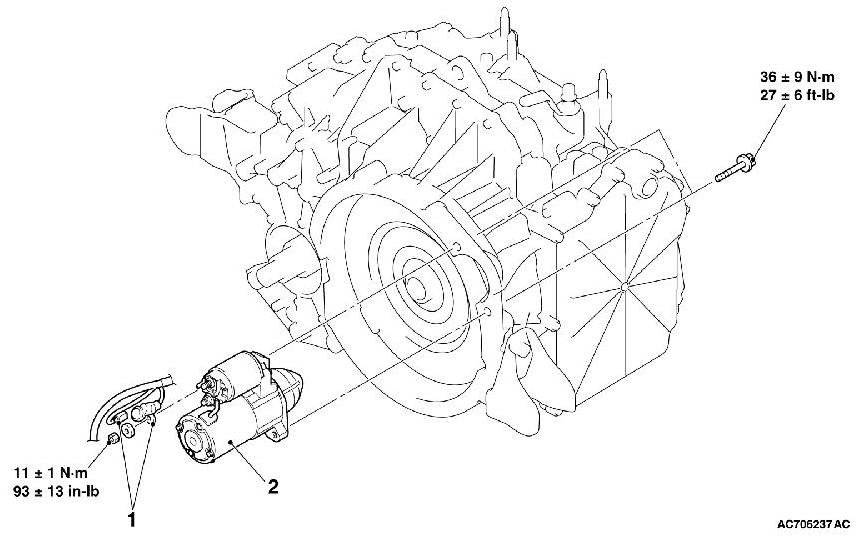

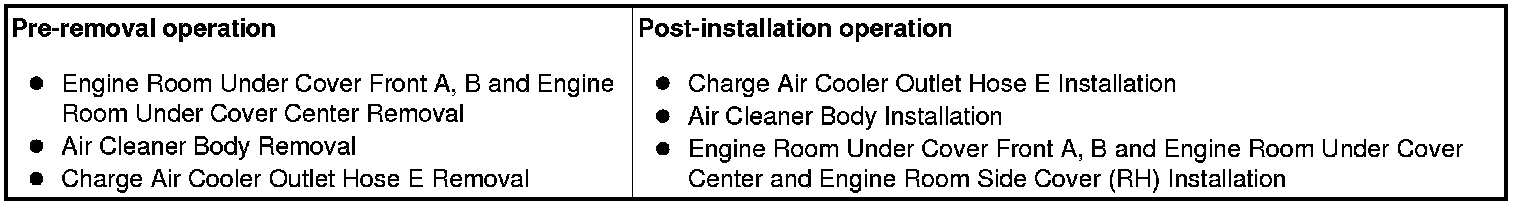

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

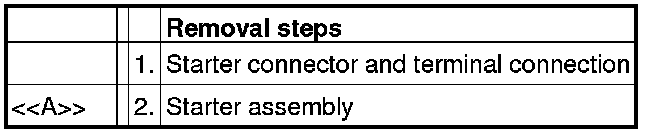

[[A]] STARTER ASSEMBLY REMOVAL

Remove the starter assembly from the lower front of the engine.
