Disassembly and Assembly

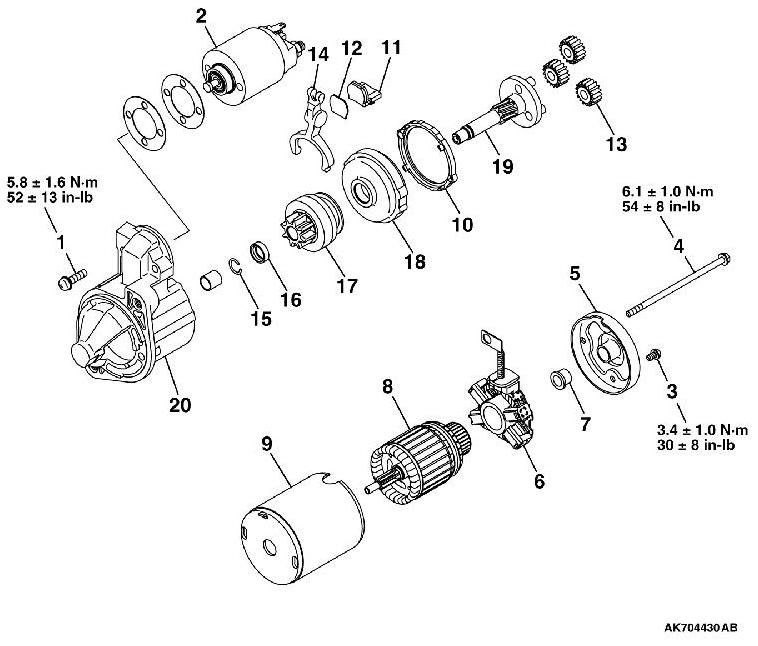

DISASSEMBLY AND ASSEMBLY

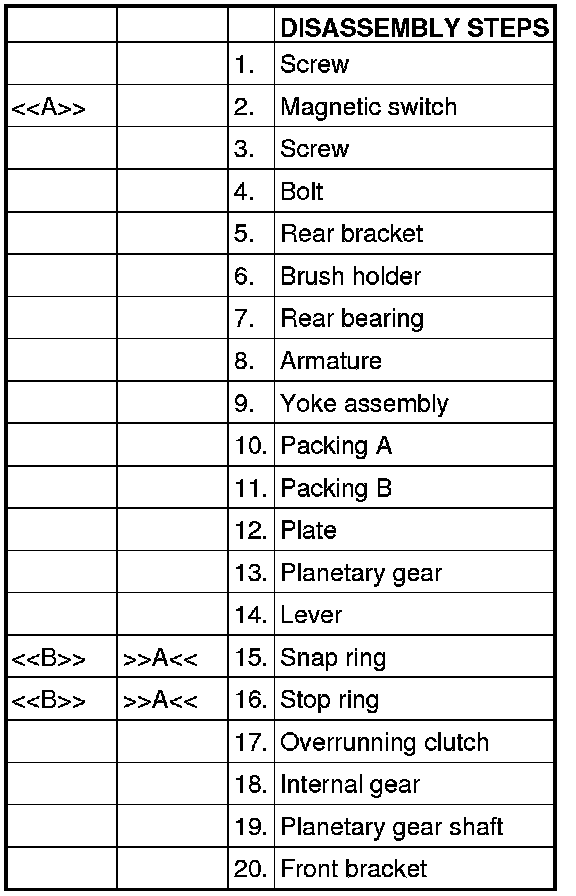

DISASSEMBLY SERVICE POINTS

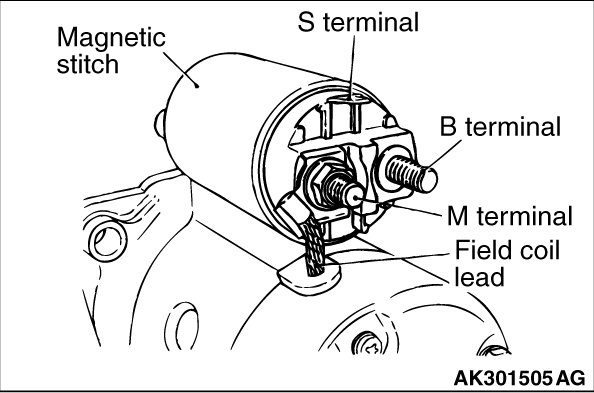

[[A]] MAGNETIC SWITCH REMOVAL





CAUTION:
Do not clamp the yoke assembly with a vise.

Disconnect the lead from the M terminal of the magnetic switch.

[[B]] SNAP RING / STOP RING REMOVAL

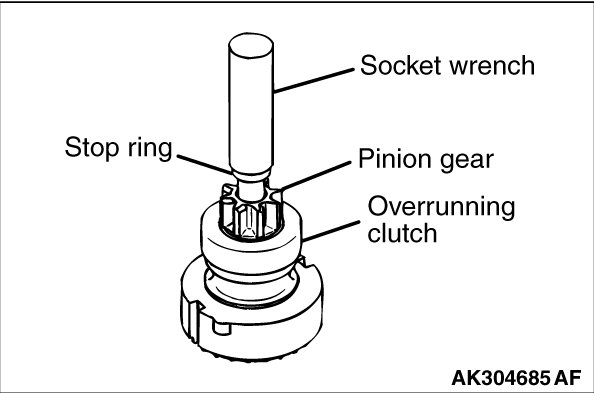

1. Apply a long socket wrench of an appropriate size to the stop ring and strike the wrench to drive out the stop ring toward the pinion gear side.





2. Remove the snap ring with snap ring pliers, then remove the stop ring and overrunning clutch.

STARTER MOTOR PARTS CLEANING

1. Never clean in a solvent such starter motor parts as the magnetic switch, brush holder, and armature. If they are soaked in a solvent, their insulation could be impaired. When these parts require cleaning, wipe off contamination with cloth.

2. Never soak the drive unit in a solvent. If it is washed in a solvent, the grease having been packed in the overrunning clutch at the factory will be washed out. Wipe the drive unit with cloth if it requires cleaning.

REASSEMBLY SERVICE POINTS

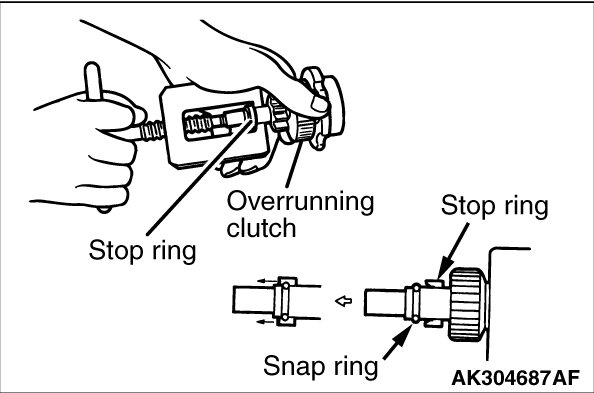

]]A[[ STOP RING / SNAP RING INSTALLATION





Use a suitable puller to pull the stop ring until it gets over the snap ring.
