Key Reminder Switch Inspection




KEY REMINDER SWITCH INSPECTION

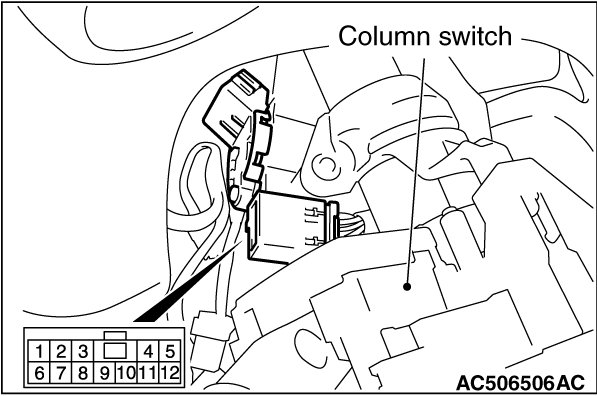

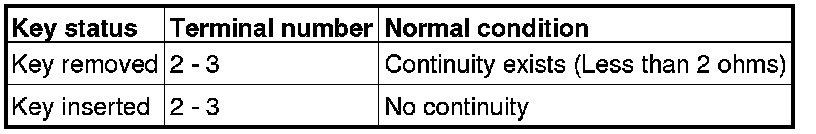

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.
