Removal and Replacement

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINTS

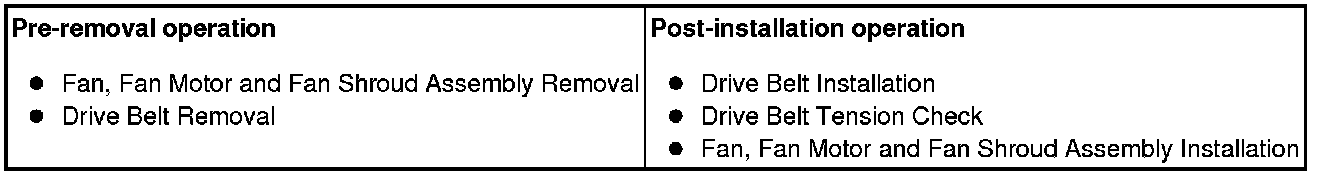

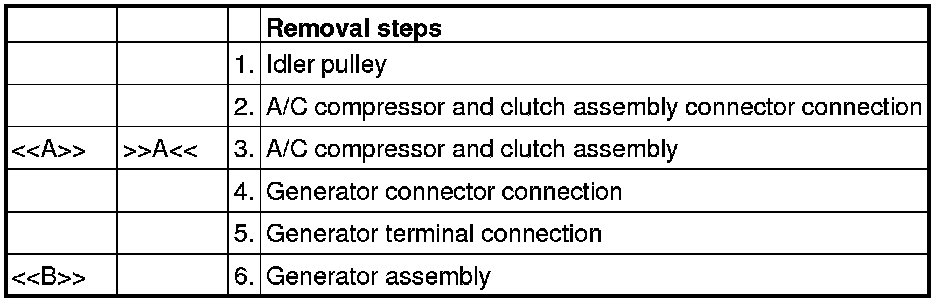

[[A]] A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL

1. With the hose installed, remove the A/C compressor and clutch assembly from the bracket.

2. Tie the removed A/C compressor and clutch assembly with a string at a position where it will not interfere with the removal and installation of the generator assembly.

[[B]] GENERATOR ASSEMBLY REMOVAL

Pull out the generator assembly upward.

INSTALLATION SERVICE POINT

]]A[[ A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION

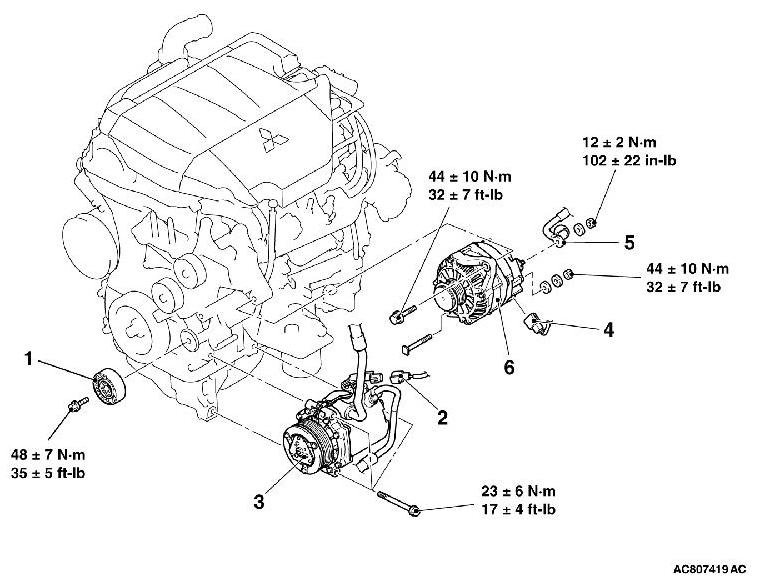

Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 23± 6Nm (17± 4 ft-lb)
