General Specification(s)




GENERAL SPECIFICATIONS

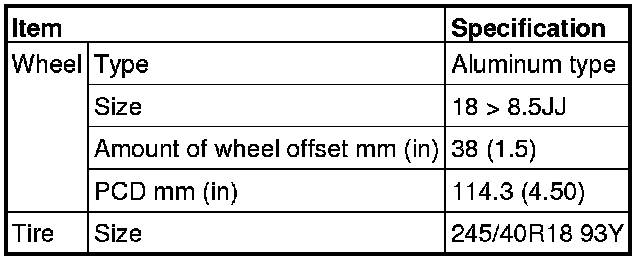

ROAD WHEEL AND TIRE





NOTE:
PCD indicates the pitch circle diameter of the wheel installation holes.

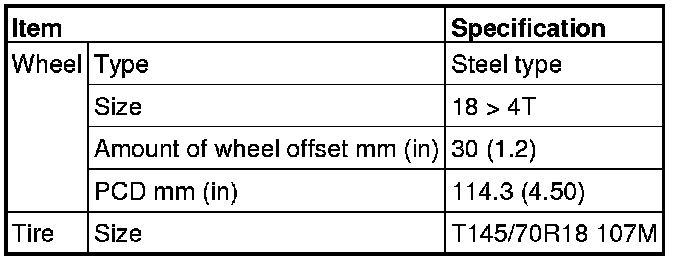

SPARE WHEEL AND TIRE





NOTE:
PCD indicates the pitch circle diameter of the wheel installation holes.
