Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> Suspension Spring ( Coil / Leaf ) >> Front Suspension

Front Suspension

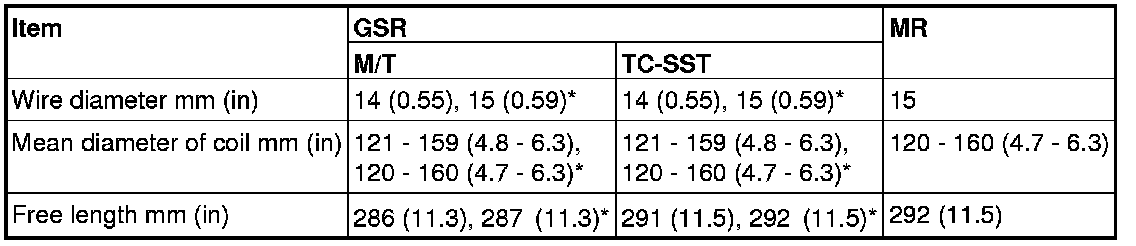

GENERAL SPECIFICATIONS

COIL SPRING






NOTE:
*: Optional
