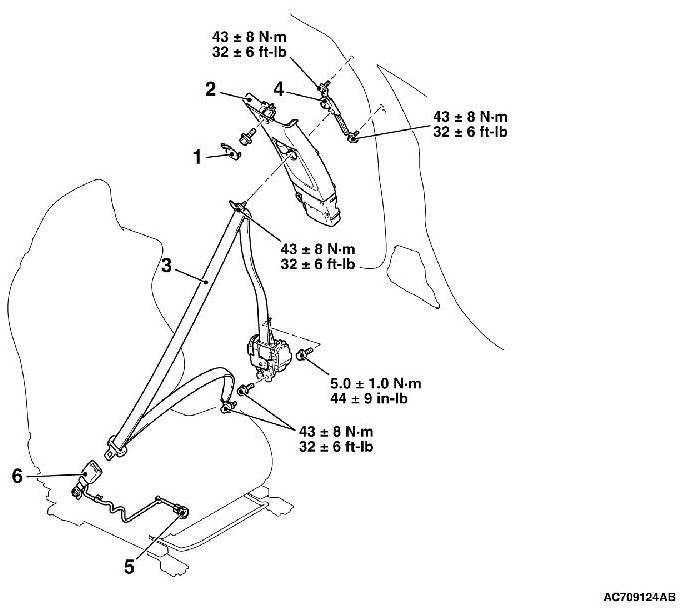

Front Seat Belt Removal and Installation

REMOVAL AND INSTALLATION

CAUTION:
SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS Service Precautions Service Precautions and Seat Belt with Pre-tensioner Service and Repair.













Required Special Tool:

- MB990784: Ornament Remover

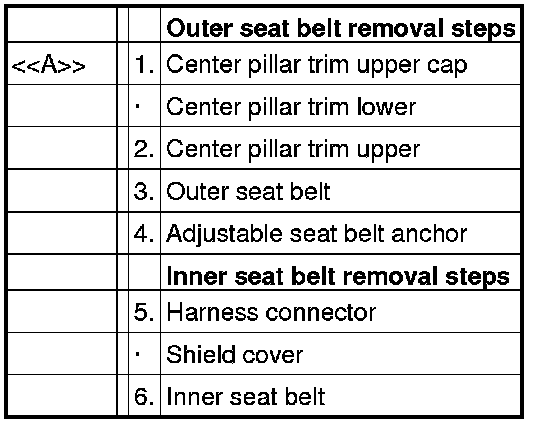

REMOVAL SERVICE POINT

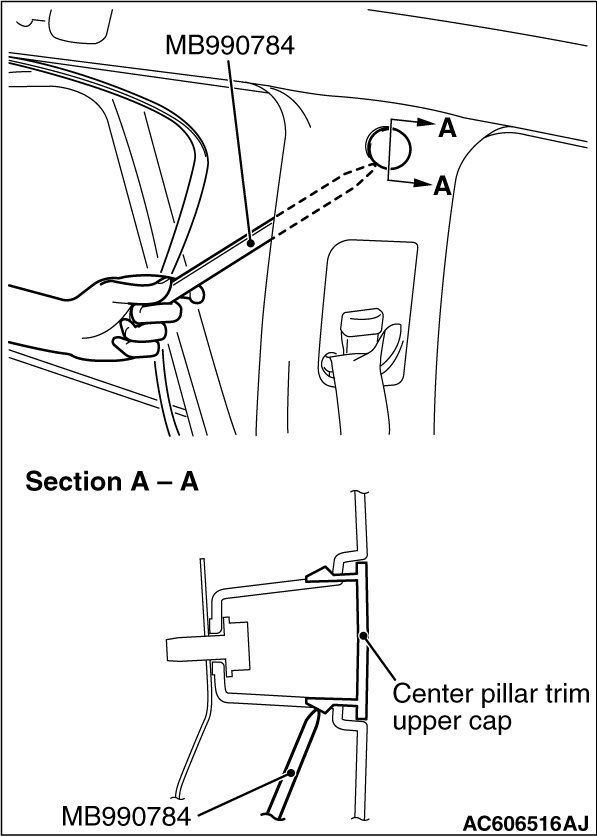

[[A]] CENTER PILLAR TRIM UPPER CAP REMOVAL





Remove the opening trim. Remove the center pillar trim upper cap by inserting the special tool MB990784 between the center pillar trim upper and body as shown in the illustration.
