Symptom Chart

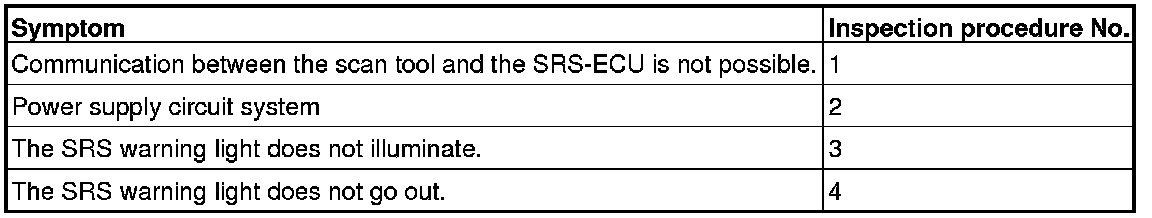

TROUBLE SYMPTOM CHART

CAUTION:
During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. After completing the repair, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.
