Air Bag Systems: Service Precautions

SERVICE PRECAUTIONS





DANGER:

- In order to avoid injury to yourself or others from accidental deployment of the air bag during servicing, read and carefully follow all the precautions and procedures described in this manual.

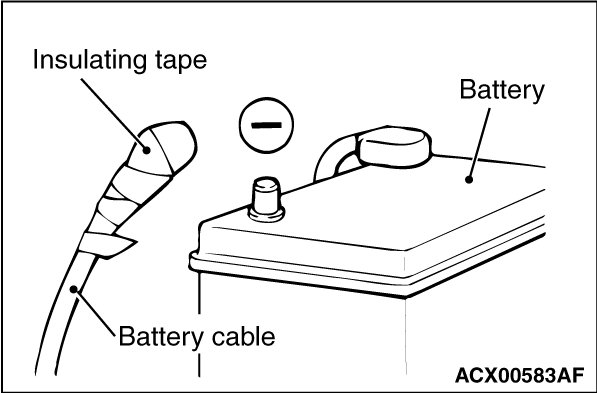

- After disconnecting the battery cable, wait 60 seconds or more before proceeding with the following work. The SRS system is designed to retain enough voltage to deploy the air bag for a short time even after the battery has been disconnected, so serious injury may result from unintended air bag deployment if work is done on the SRS system immediately after the battery cables are disconnected.





WARNING:

- Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.
- Do not use any electrical test equipment on or near the SRS components, except those specified on Test Equipment .
- Never Attempt to Repair the Following Components: SRS-ECU, Clock Spring, Air Bag Modules, Front impact sensor, Side Impact Sensor, Seat Belt with Pre-tensioner. If any of these components are diagnosed as faulty, they should only be replaced, in accordance with the INDIVIDUAL COMPONENT SERVICE procedures in this manual, starting on Individual Component Service .

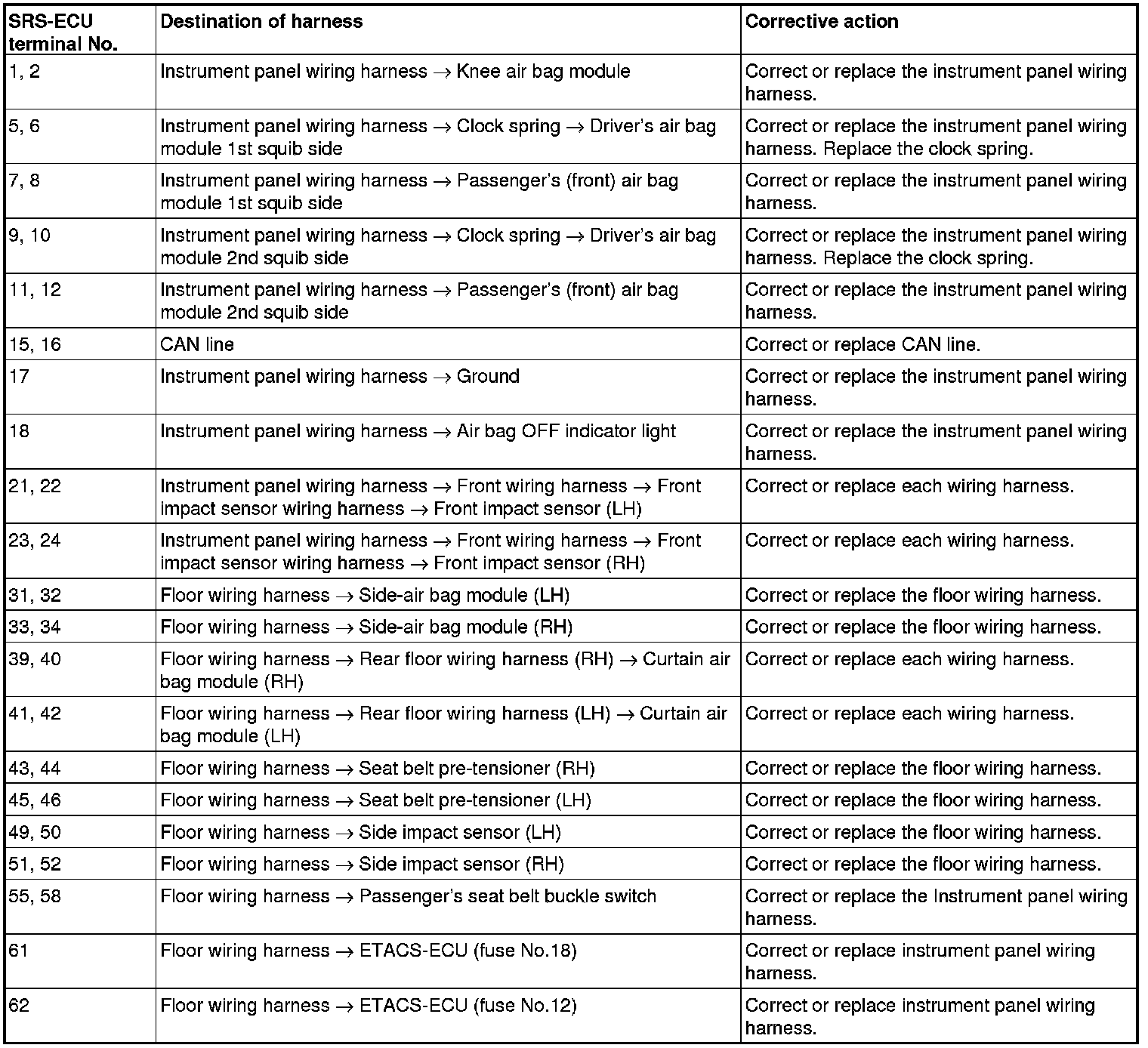

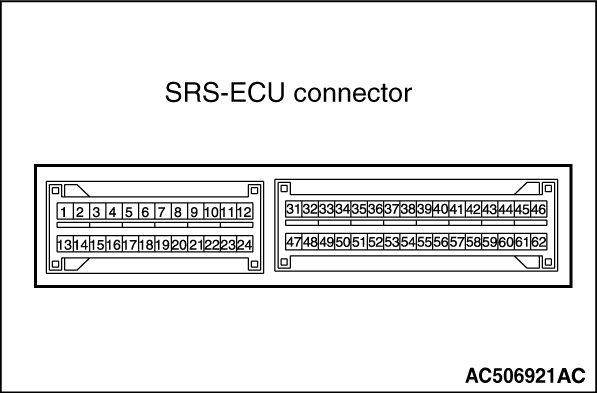

- Do not attempt to repair the wiring harness connectors of the SRS. If any of the connectors are diagnosed as faulty, replace the wiring harness. If the wires are diagnosed as faulty, replace or repair the wiring harness according to the following table.





WARNING:

- The SRS components and seat belt with pre-tensioner should not be subjected to heat, so remove the SRS-ECU, driver's and front passenger's air bag modules, clock spring, knee air bag module, side-air bag modules, Curtain air bag modules, front and side impact sensor and seat belt pre-tensioner before drying or baking the vehicle after painting.
- SRS-ECU, air bag module, clock spring, impact sensor: 93° C (200° F) or more
- Seat belt with pre-tensioner 90°C (194° F) or more
- After servicing the SRS system, check the warning light operation to make sure that the system functions properly. (Refer to Description and Operation ).
- Make certain that the ignition switch is in the "LOCK"(OFF) position when the scan tool is connected or disconnected.
