Throttle Body Assembly Removal and Installation

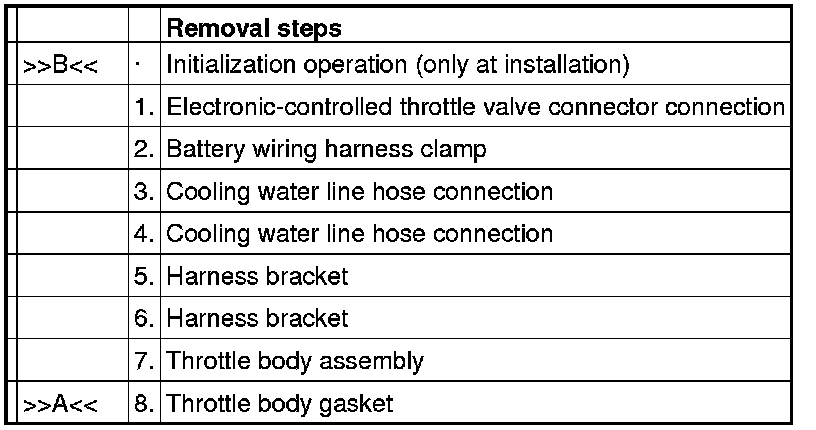

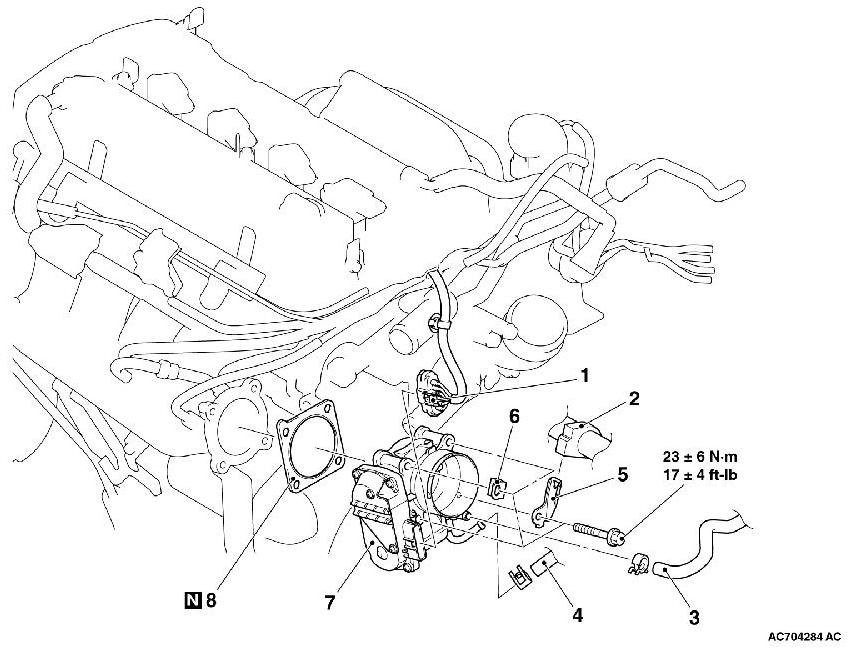

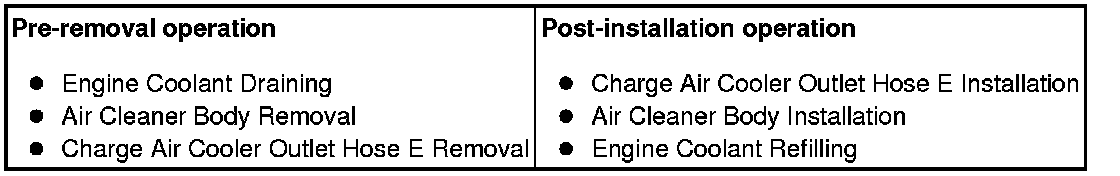

REMOVAL AND INSTALLATION

CAUTION:

- When the throttle body assembly is replaced, initialize the learned value using scan tool Initialization Procedure For Learning Value In MFI Engine ).
- Never loosen the screw fixing the throttle body assembly resin cover. If the screw is loosened, the sensor incorporated in the resin cover is misaligned and the throttle body assembly does not work normally.













INSTALLATION SERVICE POINTS

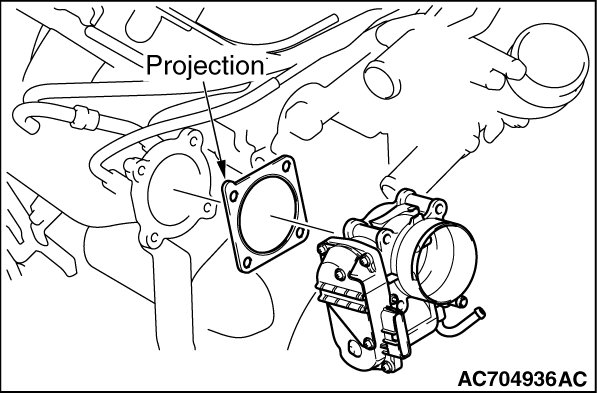

]]A[[ THROTTLE BODY GASKET INSTALLATION





Install the throttle body gasket as its projection is in the direction shown.

]]B[[ INITIALIZATION OPERATION

Turn the ignition switch to the "ON" and then to "LOCK" (OFF) position and hold it for at least 10 seconds.
