Fuel Pump: Specifications

Fuel Pressure at Curb Idle (Standard Values)

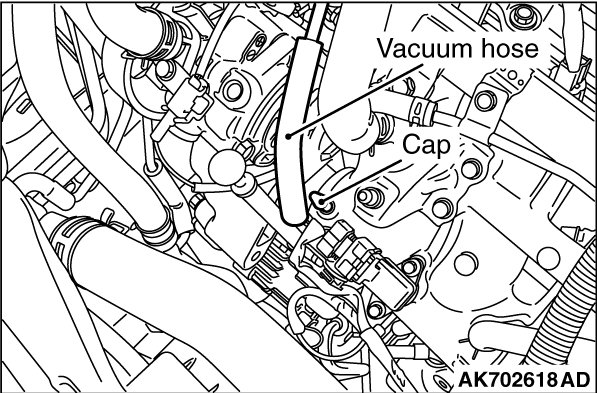

With vacuum hose connected Approximately 260 kPa (38 psi)
With vacuum hose disconnected 310 - 345 kPa (45 - 50 psi)

Stop the engine and observe fuel pressure gauge reading. It is normal if the reading does not drop within 2 minutes.
