Overhaul

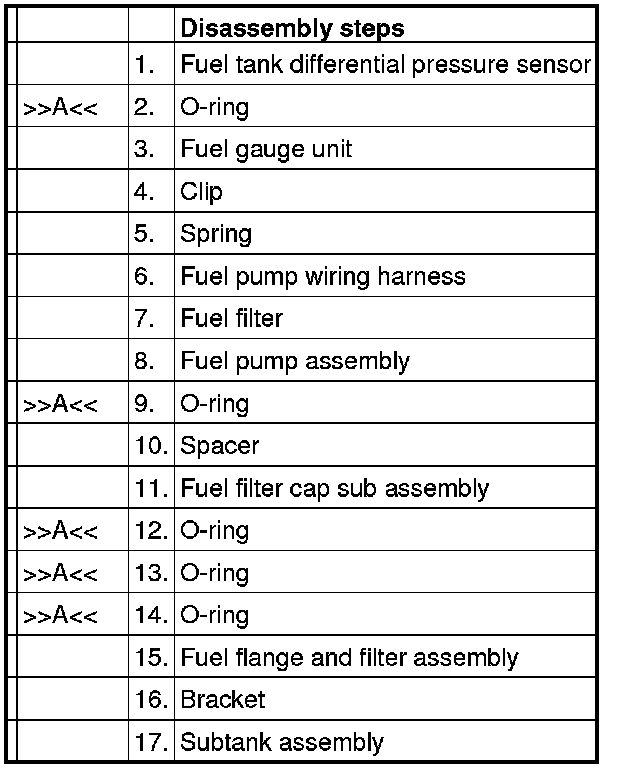

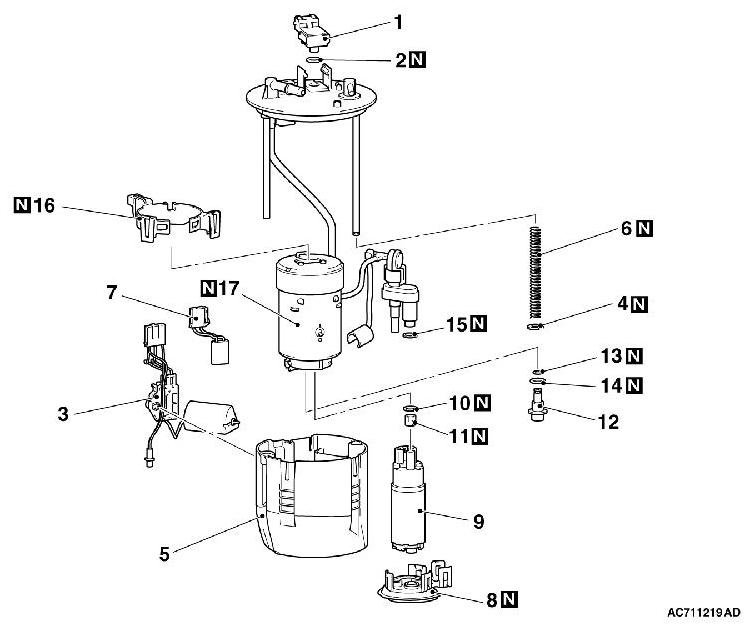

DISASSEMBLY AND REASSEMBLY

FUEL PUMP MODULE

NOTE:
For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to Removal and Replacement).









REASSEMBLY SERVICE POINT

]]A[[ O-RING INSTALLATION

To avoid twisting and damage, apply gasoline before installation of the O-ring.
