Fuel Pump Relay: Testing and Inspection

FUEL PUMP RELAY CONTINUITY CHECK

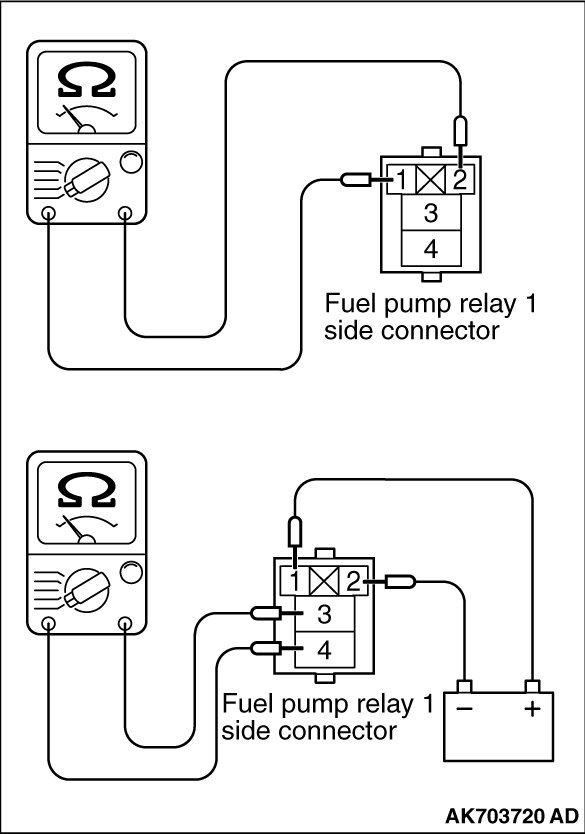

Fuel pump relay 1

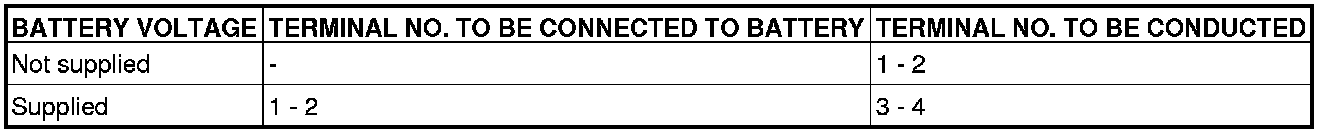

Inspect the fuel pump relay 1 for continuity in accordance with the chart shown below.






Fuel pump relay 2









Inspect the fuel pump relay 2 for continuity in accordance with the chart shown below.
