Injector Relay Continuity Check




INJECTOR RELAY CONTINUITY CHECK

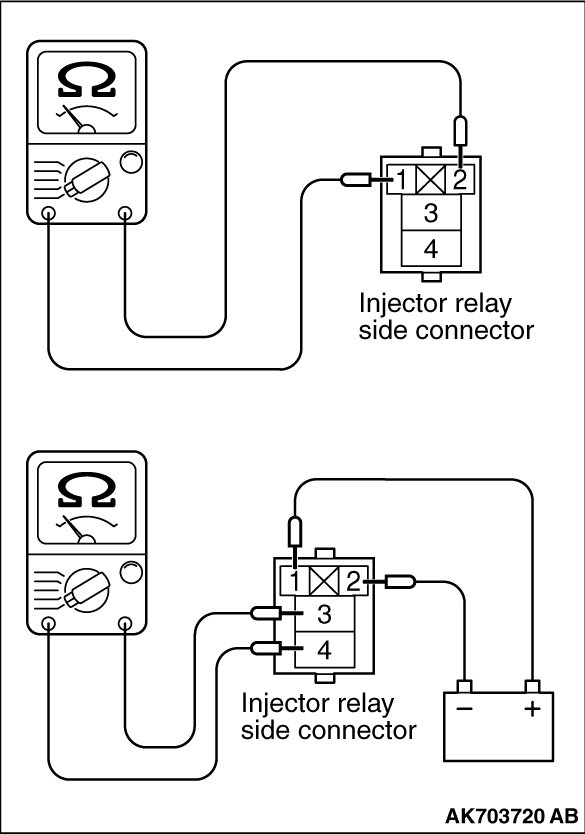

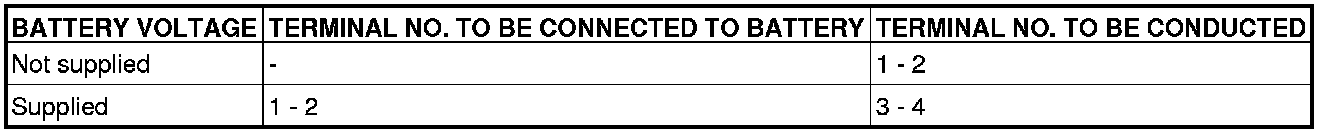

Inspect the injector relay for continuity in accordance with the chart shown below.
