Removal and Replacement

MANUAL TRANSAXLE OIL (CHECK OIL LEVEL AND CONDITION/CHANGE)

TRANSAXLE OIL LEVEL CHECK

1. Remove the engine room under cover front B assembly. Service and Repair.)





2. Remove the oil filler plug and gasket.

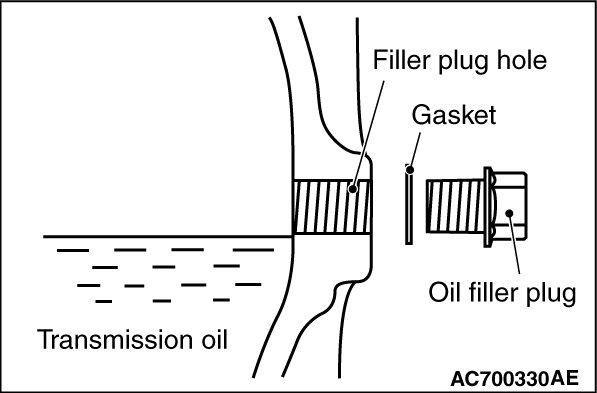

3. Check that the oil level is just below the lower edge of the oil filler plug hole.
4. Check that the oil is not excessively foul and has moderate viscosity.
5. Install the oil filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32± 2Nm (24± 1 ft-lb)
6. Install the engine room under cover front B assembly. Service and Repair.)

TRANSAXLE OIL CHANGE

1. Remove the engine room under cover front B assembly. Service and Repair.)





2. Remove the oil drain plug and gasket to drain the oil.
3. Install the oil drain plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32± 2Nm (24± 1 ft-lb)






4. Remove the oil filler plug and gasket, then fill the oil up to the lower edge of the oil filler plug.
Brand name: DiaQueen NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80
Quantity: 2.5 dm3 (2.6 quarts)
5. Install the oil filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32± 2Nm (24± 1 ft-lb)
6. Install the engine room under cover front B assembly. Service and Repair.)
