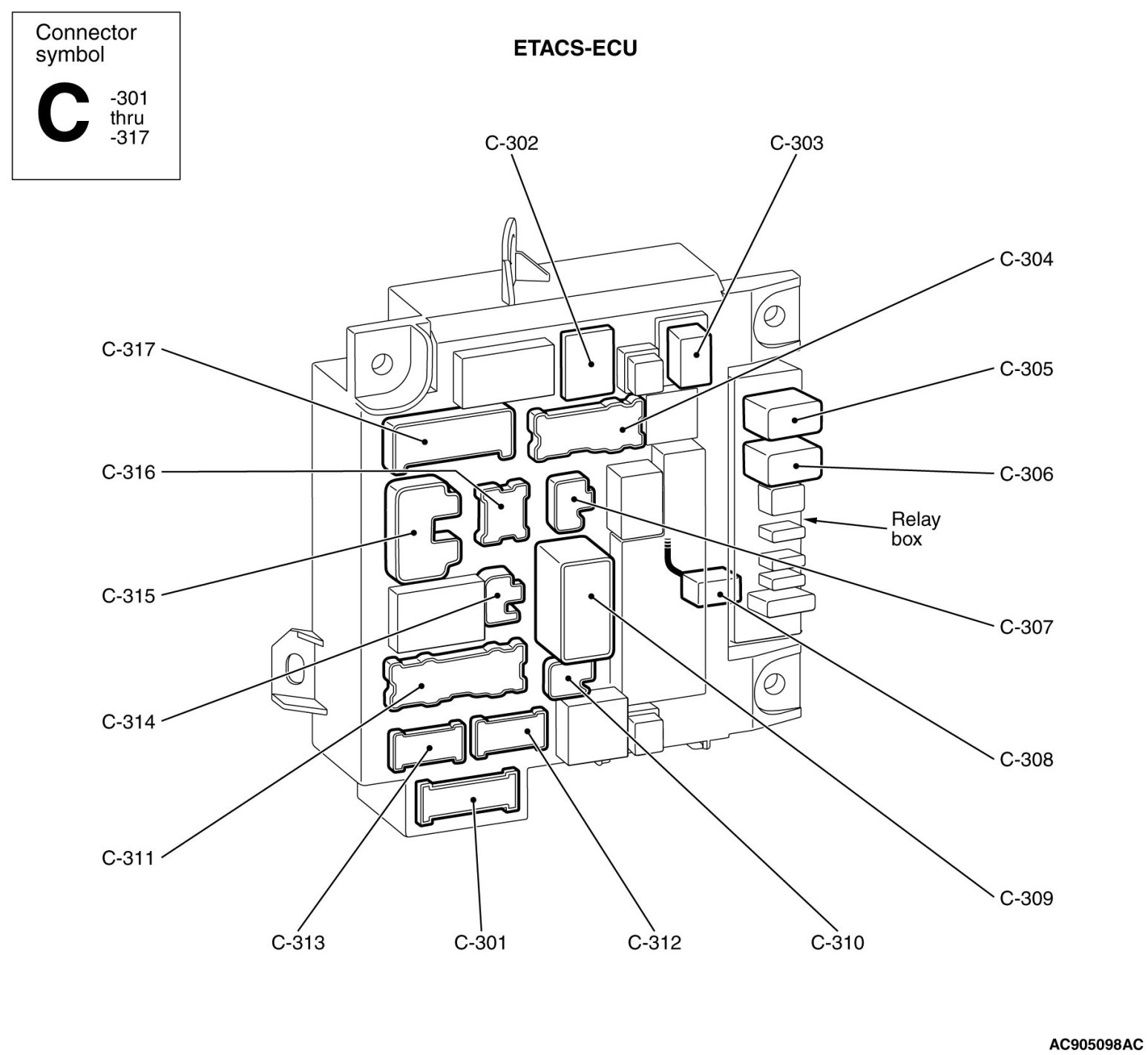

C-301 to C-317

DASH PANEL





C-301 24 Instrument panel wiring harness and ETACS-ECU combination

C-302 4 No connection

C-303 4 Blower relay

C-304 16 Front wiring harness and ETACS-ECU combination

C-305 4 Heated seat relay

C-306 4 Rear window defogger relay

C-307 2-B Front wiring harness and ETACS-ECU combination

C-308 1-GR Instrument panel wiring harness and relay box combination

C-309 2-B Front wiring harness and ETACS-ECU combination

C-310 4 No connection

C-311 20 Floor wiring harness and ETACS-ECU combination

C-312 16 Front wiring harness and ETACS-ECU combination

C-313 16-BR Floor wiring harness and ETACS-ECU combination

C-314 2 Floor wiring harness and ETACS-ECU combination

C-315 19 Instrument panel wiring harness and ETACS-ECU combination

C-316 6 Roof wiring harness and ETACS-ECU combination

C-317 15 Instrument panel wiring harness and ETACS-ECU combination
