Turn Signals: Service and Repair

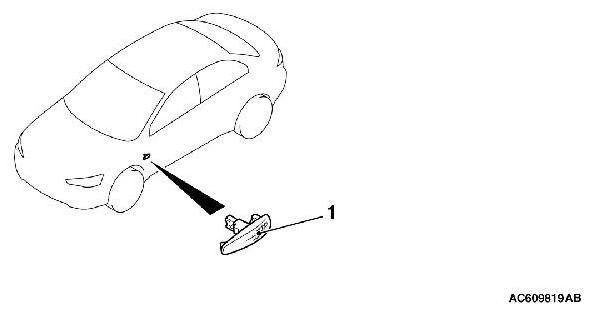

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

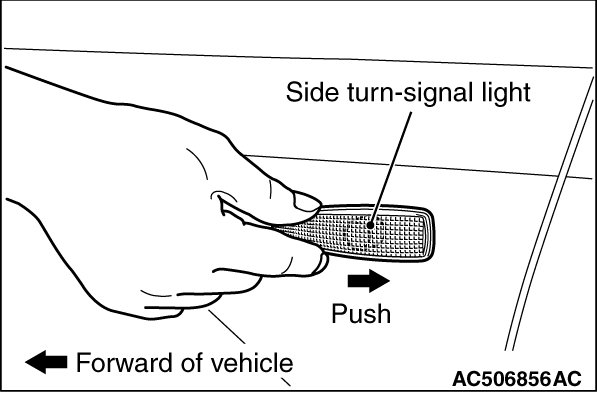

[[A]] SIDE TURN-SIGNAL LIGHT REMOVAL









Push the side turn-signal light toward the vehicle rear to bend the hook, and then remove by disengaging the tab from the fender panel.

INSTALLATION SERVICE POINT

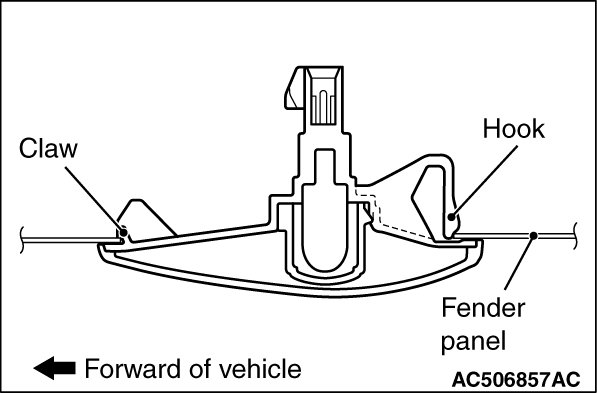

]]A[[ SIDE TURN-SIGNAL LIGHT INSTALLATION

Engage the claw to the fender panel to install the side turn signal light.
