Lighting - Dome Light Troubleshooting Revision
No: TSB-12-54-005DATE: March, 2012
MODEL: See below
SUBJECT:
DOME LIGHT TROUBLESHOOTING - SERVICE MANUAL REVISION
[TSB Revision: TSB- 12-54-005]
PURPOSE
This TSB updates a description in the dome light troubleshooting procedure.
AFFECTED VEHICLES
2008-2012 Lancer
2008-2012 Lancer Evolution
2009-2012 Lancer Sportback
2007-2012 Outlander
2011-2012 Outlander Sport
AFFECTED SERVICE MANUALS
2007-2012 Outlander: Group 54 >> Dome Light >> Symptom Procedures >> Inspection Procedure 2:
The Rear Dome Light Does Not Illuminate Normally
2008-2010 Lancer: Group 54 >> Dome Light >> Symptom Procedures >> Inspection Procedure 2: The Rear Dome Light Does Not Illuminate Normally
2010 Lancer Sportback: Group 54 >> Dome Light >> Symptom Procedures >>Inspection Procedure 2:
The Rear Dome Light Does Not Illuminate Normally
2011-2012 Lancer/Lancer Sportback: Group 54 >> Dome Light >> Symptom Procedures >> Inspection Procedure 2: The Rear Dome Light Does Not Illuminate Normally
2008-2012 Lancer Evolution: Group 54� Dome Light >> Symptom Procedures >> Inspection Procedure 2: The Rear Dome Light Does Not Illuminate Normally
2011-2012 Lancer Sportback: Group 54 >> Dome Light >> Symptom Procedures >> Inspection Procedure 2: The Rear Dome Light Does Not Illuminate Normally

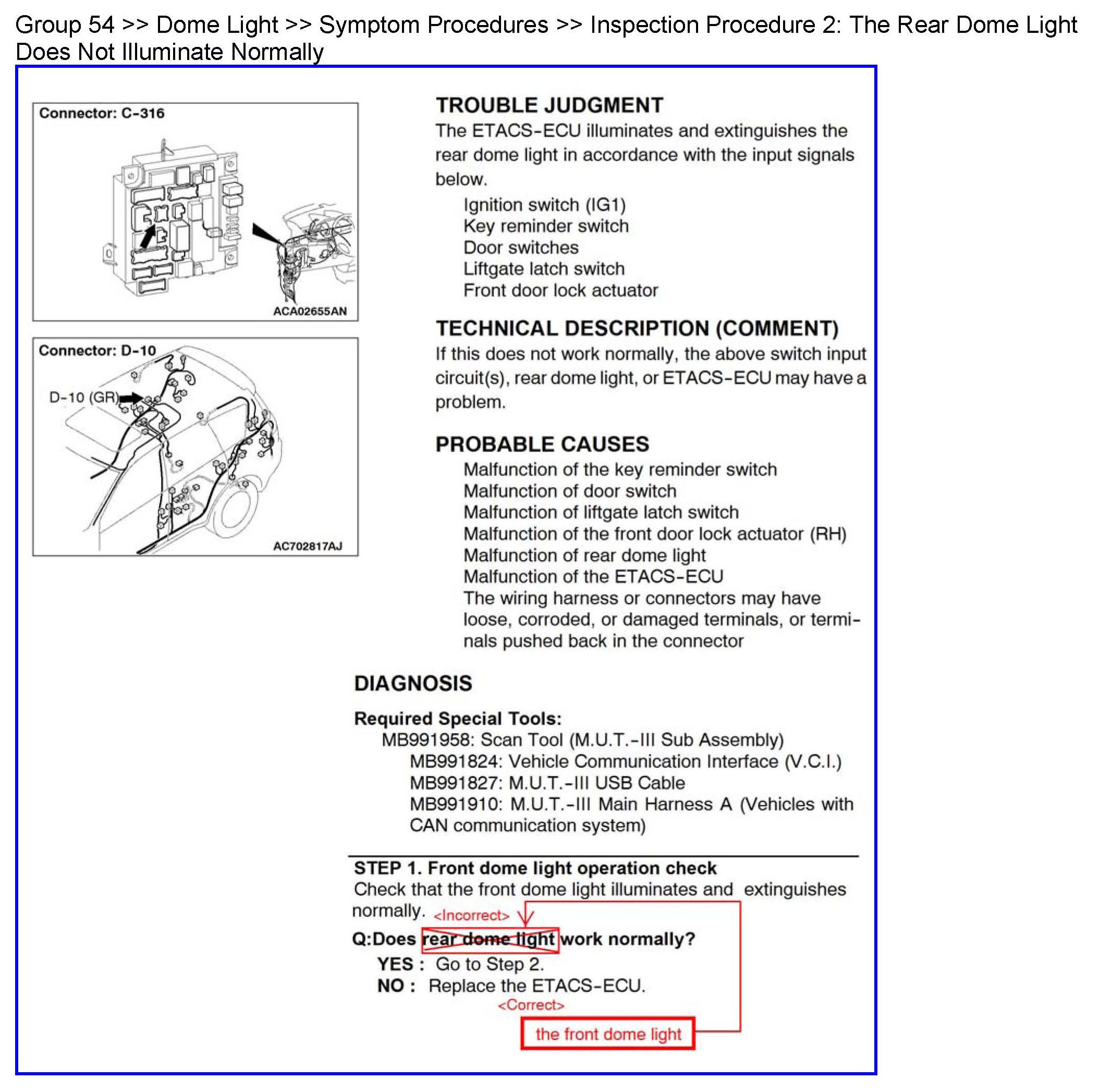

Group 54 >> Dome Light >> Symptom Procedures >> Inspection Procedure 2: The Rear Dome Light Does Not Illuminate Normally
