Headlamp Relay: Testing and Inspection




HEADLIGHT RELAY CHECK

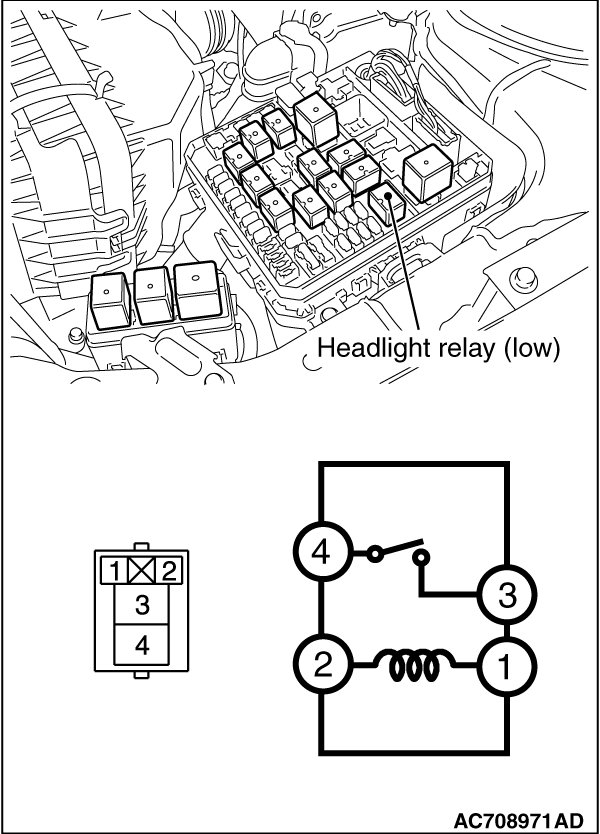

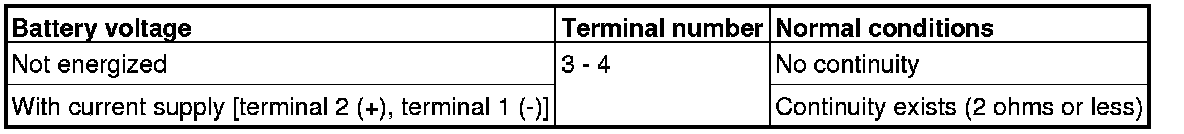

HEADLIGHT RELAY (LOW) CHECK [VEHICLES WITH DISCHARGE HEADLIGHT]










HEADLIGHT RELAY (HIGH) CHECK

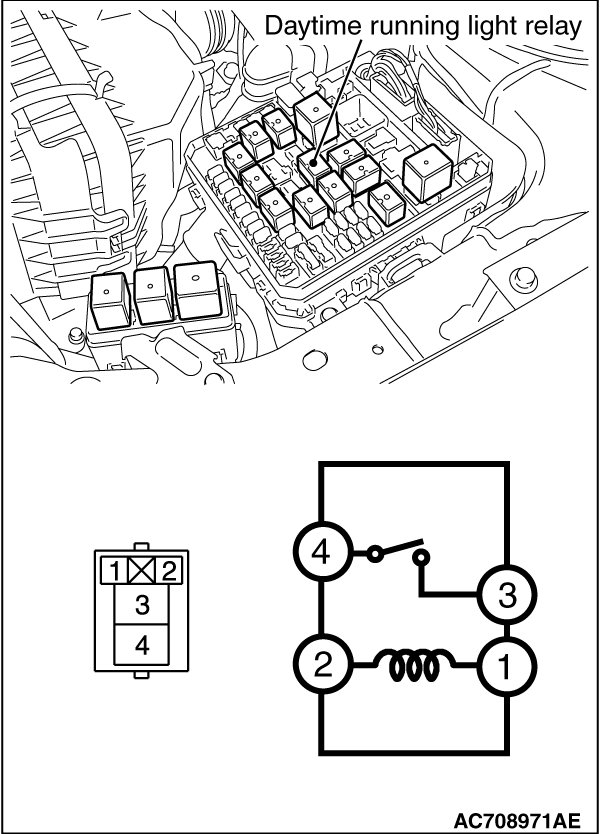

DAYTIME RUNNING LIGHT RELAY CHECK [VEHICLES WITH DISCHARGE HEADLIGHT]
