Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

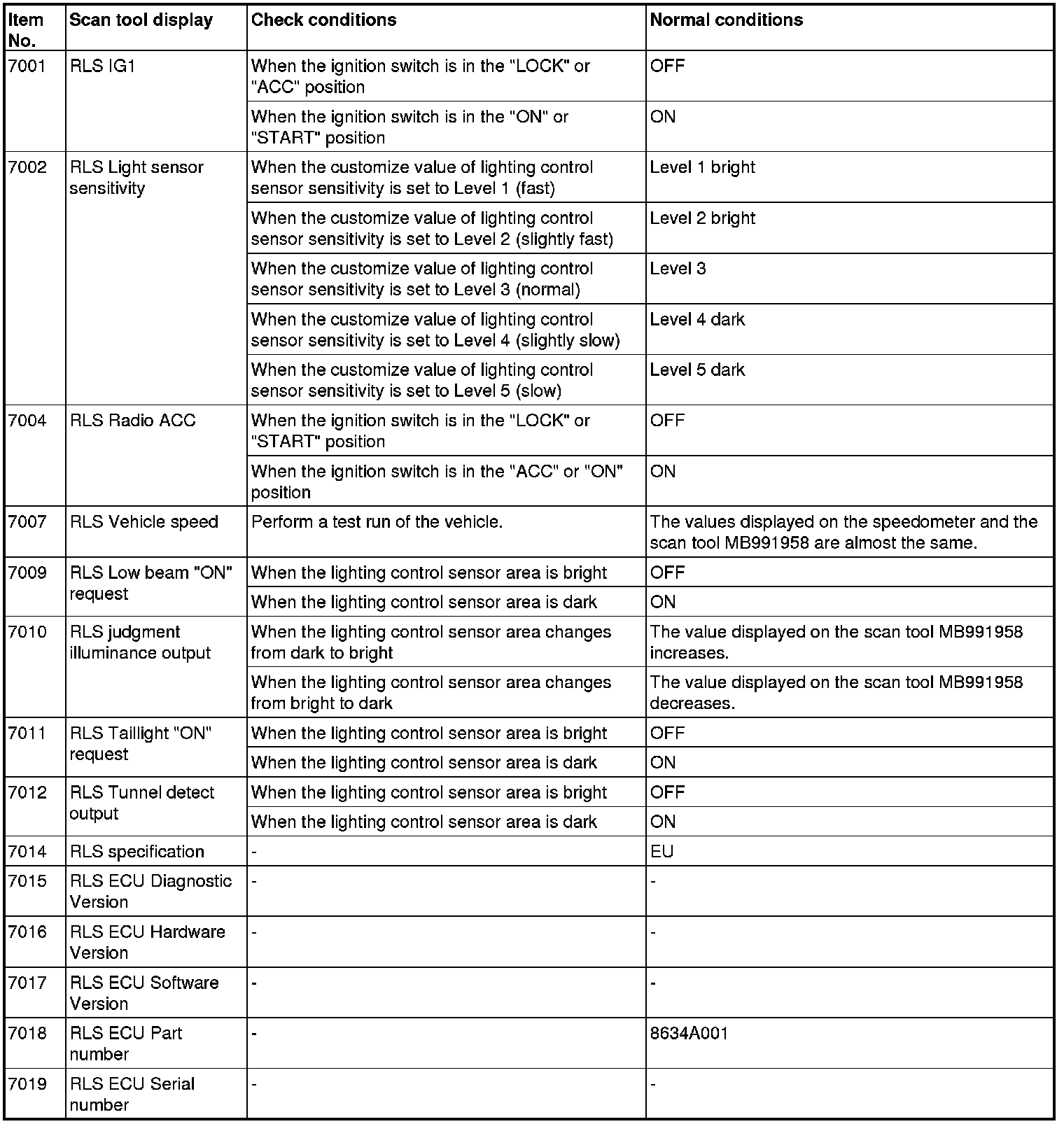

DATA LIST REFERENCE TABLE

LIN [LIGHTING CONTROL SENSOR (LIGHT SENSOR)]
